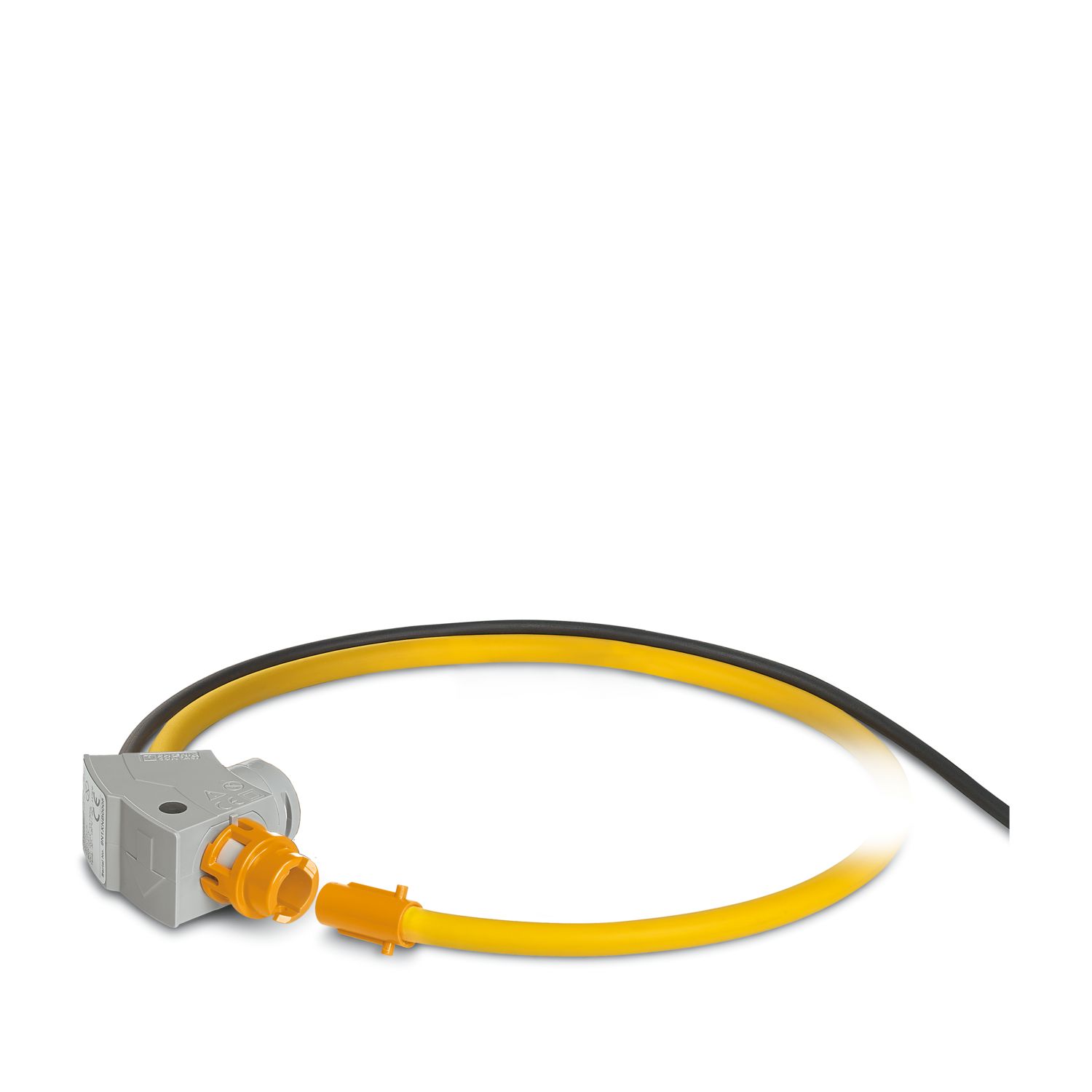

Phoenix PACT RCP-D95-Coil 2904 890,300mm long Rogowell coil. The diameter of the mounted measuring coil is 95mm. Rogowell coils are used for AC current measurement of bus bars and power cables.
| Product Type | Rogowith coil |
| kit includes | 2904921 PACT RCP-4000A-1A-D95 |
| insulation characteristics | |
| pollution level | 2 |
| measuring coil | |
| wire structure signal line | 2x 0.22mm (signal wire (tinned)) |
| 1x 0.22mm (shielded wire (tinned)) | |
| insulation | double insulation |
| Rated insulation voltage | 1000V AC (rms CAT III) |
| 600V AC (rms CAT IV) | |
| Test Voltage | 10.45 kV DC (60 seconds) |
| Accuracy | 0.2 (IEC 61869-10: A1) |
| Overview | |
| Converter Type | Rogowith coil |
| frequency | |
| Name | measuring coil |
| Frequency measurement range | 40Hz ... 20000Hz |
| current transformer | |
| Converter Type | Rogowith coil |
| signal | |
| Name | measuring coil |
| output signal (at 50Hz) | 100 mV (no load, 1000 A) |
| output voltage (no-load operation) | VOUT= M * dI/dt |
| output voltage (sinusoidal, no-load operation) | 100 mV (VOUT= 2 * & pi; * M * f * I(M = 0.318 μH; example: 50Hz;I = 1000 A)) |
| measuring coil | |
| Length | 300mm |
| diameter | 8.3mm ± 0.2mm |
| measuring coil after installation | |
| diameter | 95mm |
| signal line | |
| Length | 3 m |
| Shell Material | PC |
| Coil Material | Elastollan |
Phoenix PACT RCP-D95-Coil 2904890
