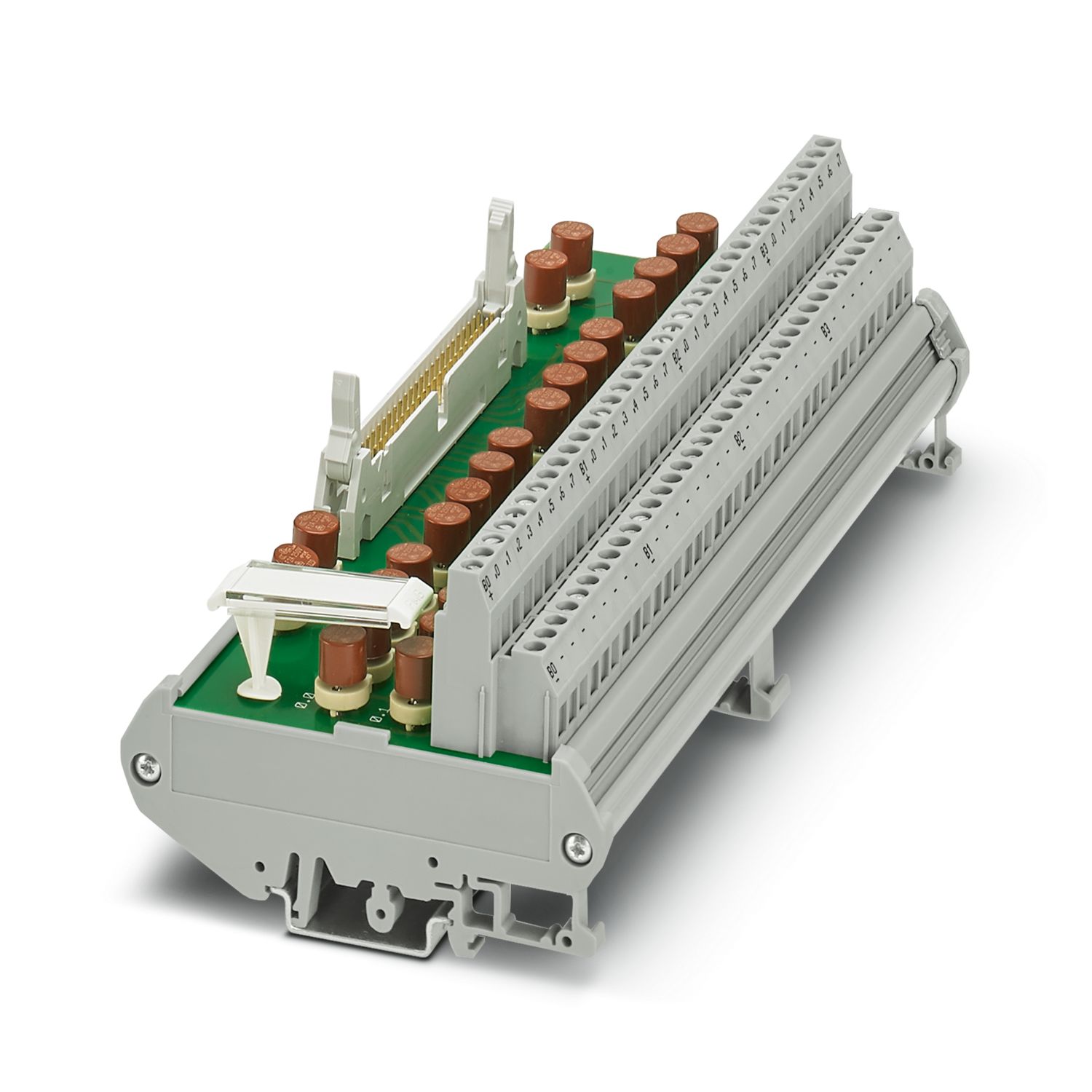

Phoenix FLKM 50/32M/SI/PLC-Passive Module 2294490,VARIOFACE passive wiring module, for 32-channel signals, each channel with 1 negative power connection terminal and 1 fuse
| Product Type | Interface Module |
| product series | VARIOFACE |
| Bits | 50 |
| Channels | 32 |
| insulation characteristics: electrical clearance and creepage distance | |
| insulation | Functional insulation |
| Overvoltage Category | II |
| pollution level | 2 |
| Nominal operating voltage (DC) | ≤ 60V DC |
| Fuse | 1 A TR5 (F1. .. F32) |
| 2 A TR5 (F33 ... F36) | |
| current (per branch) | ≤ 1 A |
| current (supply voltage per byte) | ≤ 2 A |
| electrical clearance and creepage distance | |
| Rated insulation voltage | 63V |
| Rated overvoltage | 0.6 kV (1.2 / 50 μs) |
| Applicable I/O Card | 6ES7521-1BL00-0AB0 |
| 6ES7522-1BL00-0AB0 | |
| 6ES7522-1BL01-0AB0 | |
| Applicable I/O Card | 6ES7421-1BL01-0AA0 |
| 6ES7422-1BL00-0AA0 | |
| 6ES7422-7BL00-0AB0 | |
| Supported Controller ALLEN-BRADLEY PLC 5 | |
| Applicable I/O Card | 1771 IBN |
| 1771 OBN | |
| Supported Controller HONEYWELL Experion PKS C200 | |
| Applicable I/O Card | TC-IDD 321 |
| TC-ODD 321 | |
| Supported Controller MITSUBISHI MELSEC L | |
| Applicable I/O Card | LX41C4 |
| LX42C4 | |
| LY41NT1P | |
| LY42NT1P | |
| LY41PT1P | |
| LY42PT1P | |
| Supported Controllers MITSUBISHI MELSEC Q | |
| Applicable I/O Card | QX81 |
| QY81P | |
| QX41 | |
| QX41-S1 | |
| QX42 | |
| QX42-S1 | |
| QX71 | |
| QX72 | |
| QY41P | |
| QY42P | |
| QY71 | |
| QH42P | |
| QX82 | |
| QX82-S1 | |
| QY82P | |
| Supported Controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM | |
| Applicable I/O Card | DDI 353 |
| DDI 853 | |
| DAI 453 | |
| DDO 353 | |
| Supported Controller SIEMENS S7-300 / ET 200 M | |
| Applicable I/O Card | CPU 313C-2DP |
| CPU 314C-2DP | |
| CPU 314C-2PtP | |
| 6ES7321-1BL00-0AA0 | |
| 6ES7322-1BL00-0AA0 | |
| 6ES7323-1BL00-0AA0 | |
| CPU 313C | |
| CPU 313C-2PtP | |
| RX3i | |
| Applicable I/O Card | IC694MDL754 |
| IC694MDL660 | |
| Interface 1 (Control Layer) | |
| connection meets standards | IEC 60603-13 |
| Connection Mode | IDC/FLK pin |
| connection quantity | 1 |
| Bits | 50 |
| Insertion/unplugging cycle | > 50 |
| needle pitch | 2.54mm |
| interface 2 (field side) | |
| Connection Mode | screw connection |
| stripping length | 7mm |
| thread | M3 |
| Bits | 72 |
| Rigid conductor cross section | 0.2 mm² ... 4 mm² |
| rigid wire cross section (2 wires with the same cross section) | 0.2 mm² ... 1.5 mm² |
| Flexible Wire Cross Section | 0.2 mm² ... 2.5 mm² |
| 0.25 mm² ... 1.5 mm² (cold press head without plastic sleeve) | |
| 0.25 mm² ... 2.5 mm² (cold press head with plastic sleeve) | |
| flexible wire cross section (2 wires with the same cross section) | 0.2 mm² ... 1.5 mm² |
| 0.25 mm² ... 0.75 mm² (cold press head without plastic sleeve) | |
| 0.5 mm² ... 0.5 mm² (TWIN sleeve with plastic insulating sleeve) | |
| Attachable Guide Cross Section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| needle pitch | 5.08mm |
