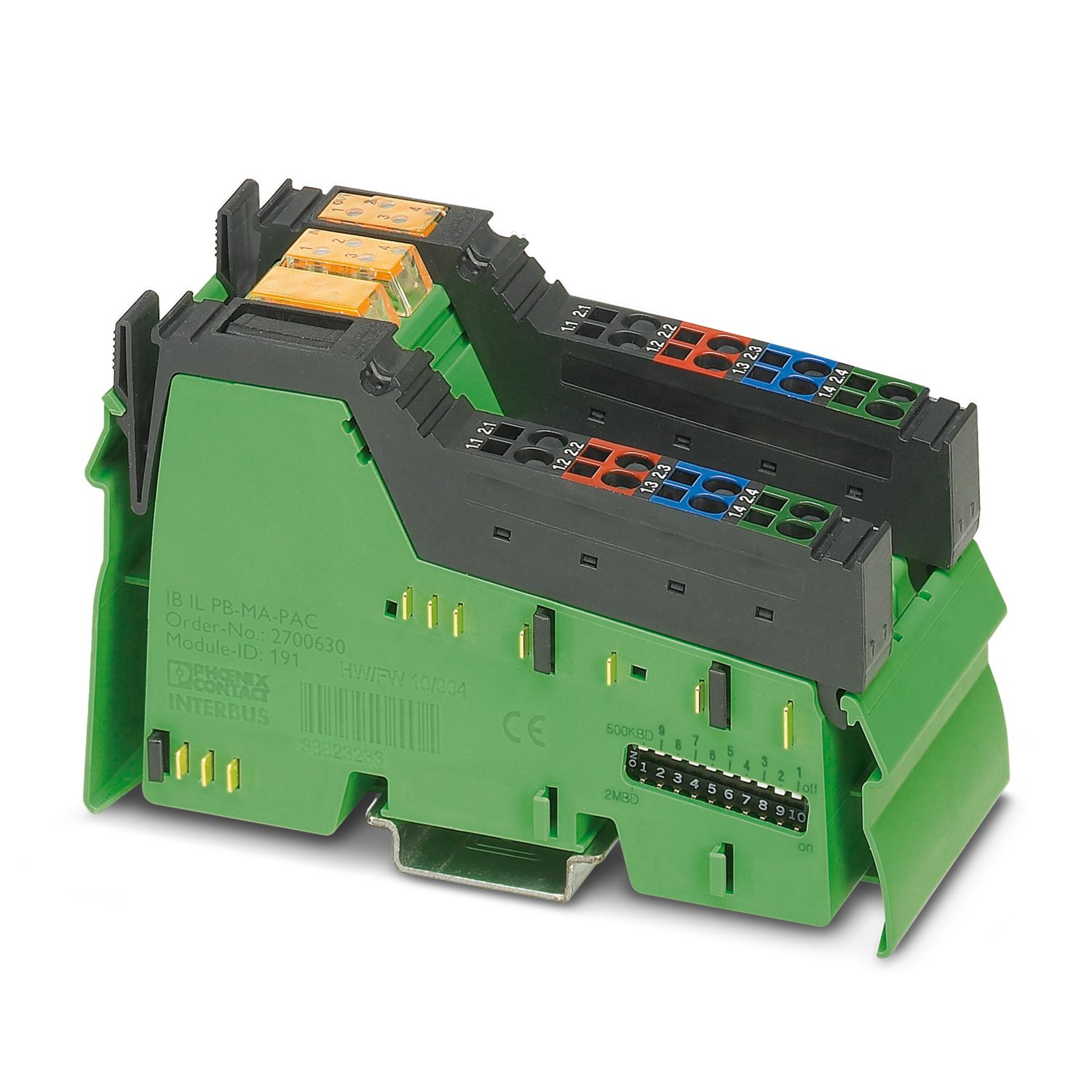

Phoenix IB IL PB MA-PAC-communication module 2700630,Inline PROFIBUS master/slave, used to connect to the PROFIBUS system, with a full set of accessories (connector plug and marker board), only PC Worx
| width | 48.8mm |
| height | 119.8mm |
| depth | 71.5mm |
| Application Description | |
| Application Description | for industrial applications only |
| Inline Local Bus | |
| Connection Mode | Bus Base Module |
| transmission speed | 500 kBit/s / 2 MBit/s |
| PROFIBUS DP V0 master/slave | |
| Connection Mode | 9-position D-SUB hole connector |
| transmission speed | 9,6 kBit/s ... 12 MBit/s |
| Channels | 1 |
| Module | |
| ID Code (dec.) | 221 |
| Hex ID Encoding | DD |
| Length Encoding (Hexadecimal) | 0C |
| length encoding (decimal) | 12 |
| Process Data Channel | 24 Byte |
| Input Address Area | 24 Byte (default (value)) |
| Output Address Area | 24 Byte (default (value)) |
| Register Length | 32 Byte |
| Product Type | I/O components |
| product series | Inline |
| type | Module |
| rated conditions | 2.1W |
| power consumption | Module |
| potential: communication power supply (UL) | |
| supply voltage | 7.5V DC (across the power supply) |
| current consumption | Max. 280 mA |
| Typical 98 mA | |
| connection technology | |
| Connection Name | PROFIBUS DP |
| PROFIBUS DP | |
| Connection Mode | 9-position D-SUB hole connector |
| stripping length | 8mm |
| environmental conditions | |
| ambient temperature (operation) | -25°C ... 55°C |
| protection level | IP20 |
| air pressure (operating) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| ambient temperature (storage/transport) | -25°C ... 85°C |
| Allowable humidity (operating) | 10%... 95% (according to DIN EN 61131-2) |
| Allowable humidity (storage/transportation) | 10%... 95% (according to DIN EN 61131-2) |
| protection level | III (IEC 61140,EN 61140,VDE 0140-1) |
| Installation Type | DIN rail mounting |
