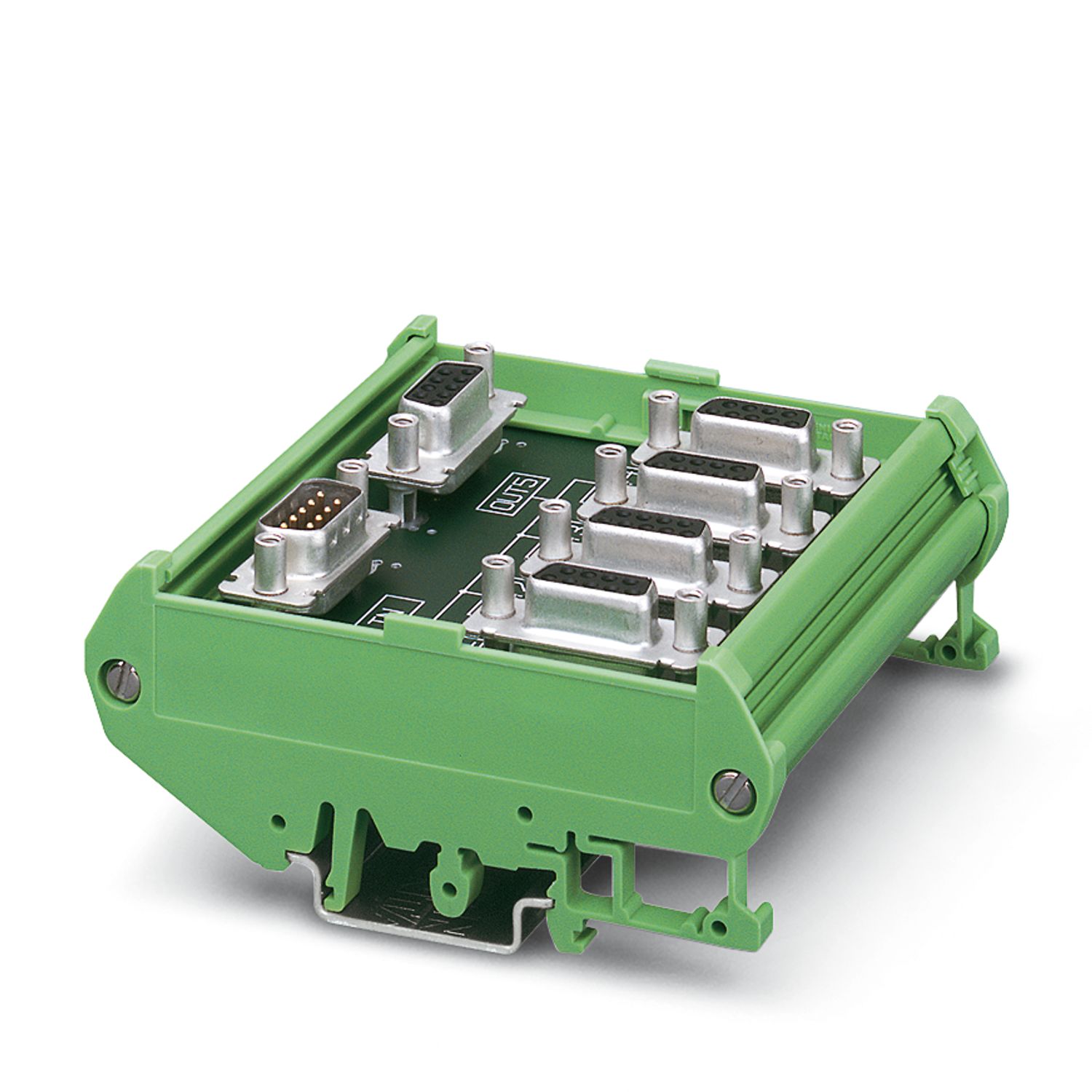

Phoenix PSM PTK-4-distributor 2799364,RS-485 T-type passive distributor, with 1 9-position D-SUB pin connector and 5 9-position D-SUB hole connectors
| Product Type | Adapter |
| Application | standard |
| Pin Distribution | all connectors 1:1 connection |
| Test Voltage | 500V AC (50Hz,1min,rms) |
| rated conditions | 0W |
| Rated voltage UN | 60V AC/DC |
| Rated current IN | 1 A |
| transmission medium | copper cable |
| incoming line | |
| Connection Mode | D-SUB-9 male connector |
| Outlet | |
| Connection Mode | D-SUB-9 female connector |
| Branch | |
| Connection Mode | 4x D-SUB-9 socket |
| bus system | RS-485 |
| Dimensional drawing | |
| width | 89.8mm |
| height | 89.6mm |
| length | 39mm |
| color (shell) | green (RAL 6021) |
| Identification Material (Shell) | PVC |
| flame retardant rating, according to UL 94 | V0 |
| Shielding | SUB-D plug housing |
| environmental conditions | |
| protection level | IP20 |
| Ambient temperature (operation) | -25°C ... 70°C |
| Substances that do not affect the coating | VDMA 24364:2018-05 |
Phoenix PSM PTK-4-Distributor 2799364
