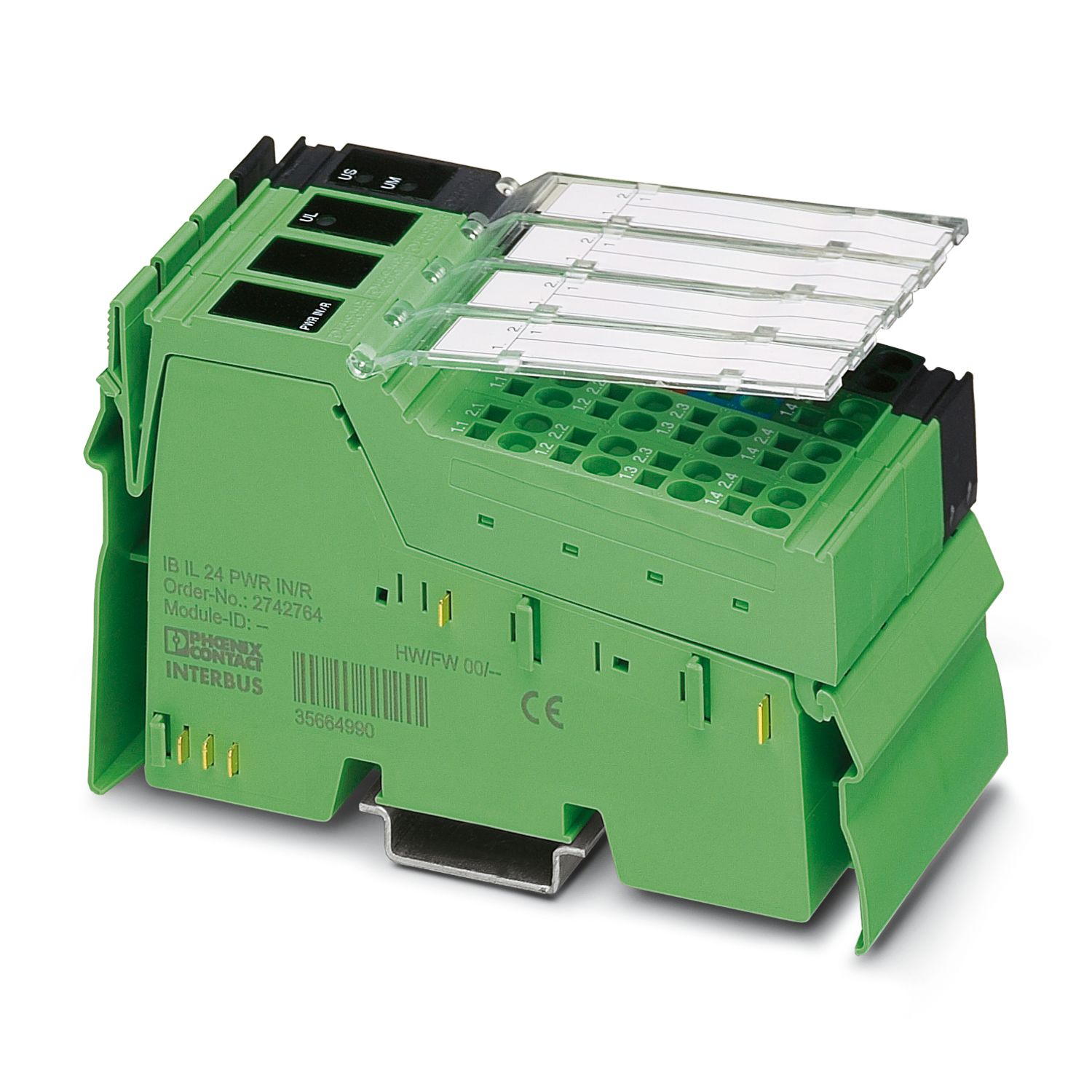

Phoenix IB IL 24 PWR IN/R-PAC-power module 2861674,Inline power module or power module, with accessories (connector and marker board),24V DC, without fuse
width
48.8mm
height
119.8mm
depth
71.5mm
Application Description
Application Description
for industrial applications only
Use Restrictions
CCCex Description
is not permitted in China for use in potentially explosive areas.
Inline Local Bus
interfaces
2
Connection Mode
Inline Data Bridge Block
transmission speed
500 kBit/s / 2 MBit/s (can be used in Inline stations with these transmission speeds)
Module
ID Code (dec.)
none
Hex ID Encoding
None
Register Length
0 bit
the required parameter data
0 Byte
0 Byte
Product Type
I/O components
Product Series
Inline
type
Module
connectors
4
special nature
24V DC
power supply/margin UM, US, UL, UANA
insulation characteristics
protection level
III (IEC 61140,EN 61140,VDE 0140-1)
rated conditions
3W
Test section
7.5V logic supply, 24V analog supply/functional ground 500V AC 50Hz 1 min
7.5V logic power supply, 24V analog power supply/24V main power supply, 24V segment power supply 500V AC 50Hz 1 min
24V main power supply, 24V segment power supply/functional ground 500V AC 50Hz 1 min
protection circuit
surge protection (segment voltage, supply voltage, 24V supply); input protection diode (if long-term overload will be damaged) input protection diode can be up to 1500W pulse load short circuit.
polarity protection (segment power supply/main power supply); parallel diode to prevent reverse polarity; when an error occurs, high current through the diode will cause the upstream fuse to blow.
Reverse polarity (24V power supply); series diodes are located on the guide path of the power supply unit; when a fault occurs, only low current is generated. When a fault occurs, the external power supply unit has no fuse to blow.
Fuse
Electrical/thermal overload protection, included in shipment
Power
I/O voltage
24V DC
Peripheral Voltage Range
19.2V DC ... 30V DC (includes all tolerances, including ripple)
residual wave
± 1.2V
Maximum current consumption
8 A
potential: 24V power supply (U24V) for generating ULand UANA
supply voltage
24V DC (via Inline connector)
Supply Voltage Range
19.2V DC ... 30V DC (includes all tolerances, including ripple)
current consumption
Maximum 1.25 A DC (at rated voltage; includes 0.75 A DC for communication power supply and 0.5 A DC for analog voltage power supply)
Minimum 12 mA DC (rated voltage)
