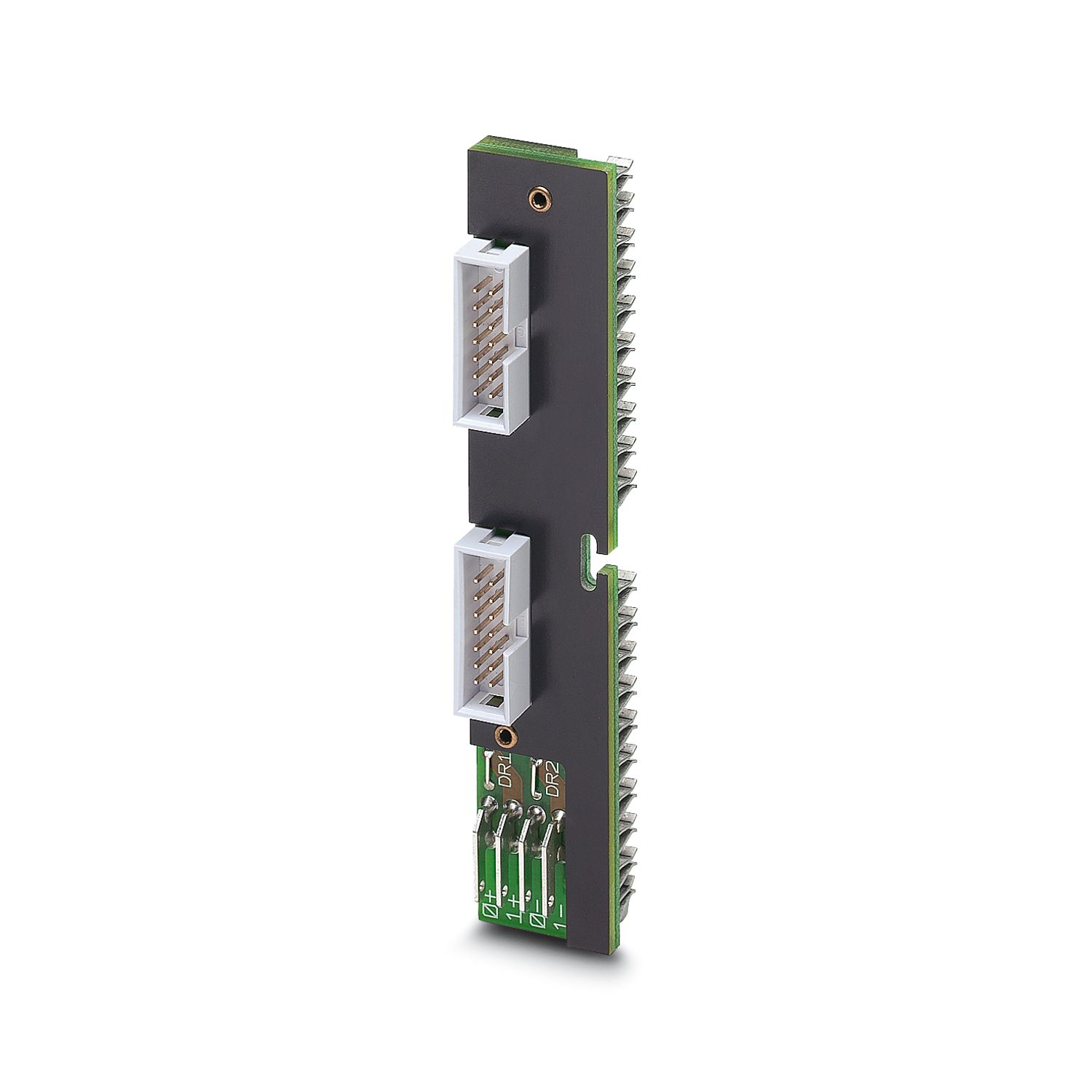

Phoenix FLKM 14-PA-S300-Card front adapter 2299770,VARIOFACE front panel adapter, used to SIMATIC S 7-300,2x 8 channels switchable.
| Product Type | Card Front Adapter |
| product series | VARIOFACE |
| insulation characteristics: electrical clearance and creepage distance | |
| insulation | Functional insulation |
| Overvoltage Category | II |
| pollution level | 2 |
| Nominal operating voltage (AC) | ≤ 30V AC |
| Nominal operating voltage (DC) | ≤ 60V DC |
| Rated operating mode | 100% Eligible |
| current (per branch) | ≤ 1 A |
| current (via IDC/FLK) | ≤ 2 A |
| current (powered by flat quick plug) | ≤ 8 A |
| electrical clearance and creepage distance | |
| Rated insulation voltage | 63V |
| Rated overvoltage | 0.6 kV (1.2 / 50 μs) |
| Supported Controller SIEMENS S7-300 / ET 200 M | |
| Applicable I/O Card | 6ES7321-1BH50-0AA0 |
| 6ES7321-7BH01-0AB0 | |
| 6ES7321-1BH02-0AA0 | |
| 6ES7321-1BH10-0AA0 | |
| 6ES7322-1BH01-0AA0 | |
| 6ES7322-1BH10-0AA0 | |
| 6ES7322-8BF00-0AB0 | |
| 6ES7323-1BH01-0AA0 | |
| 6ES7331-7HF01-0AB0 | |
| 6ES7331-7KF02-0AB0 | |
| 6ES7331-7KB02-0AB0 | |
| 6ES7331-7TF01-0AB0 | |
| 6ES7332-5HD01-0AB0 | |
| 6ES7332-5HB01-0AB0 | |
| 6ES7332-7ND02-0AB0 | |
| 6ES7332-8TF01-0AB0 | |
| 6ES7334-0CE01-0AA0 | |
| 6ES7334-0KE00-0AB0 | |
| 6ES7335-7HG01-0AB0 | |
| 6ES7338-4BC01-0AB0 | |
| 6ES7350-1AH03-0AE0 | |
| 6ES7351-1AH01-0AE0 | |
| 6ES7352-1AH02-0AE0 | |
| 6ES7353-1AH01-0AE0 | |
| 6ES7354-1AH01-0AE0 | |
| 6ES7355-0VH10-0AE0 | |
| 6ES7355-1VH10-0AE0 | |
| Interface 1 (Control Layer) | |
| Connection Mode | in-line connection |
| Bits | 20 |
| interface 2 (field side) | |
| connection meets standards | IEC 60603-13 |
| Connection Mode | IDC/FLK Pin Row |
| connection quantity | 2 |
| Bits | 14 |
| Insertion/unplugging cycle | > 50 |
| needle pitch | 2.54mm |
| interface 3 (power supply) | |
| Connection Mode | Flat Quick Plug |
| Bits | 4 |
| Considerations | 2.8 x 0.8 |
| Product Size | |
| width | 22.5mm |
| height | 117mm |
| depth | 19.39mm |
Phoenix FLKM 14-PA-S300-Card Front Adapter 2299770
