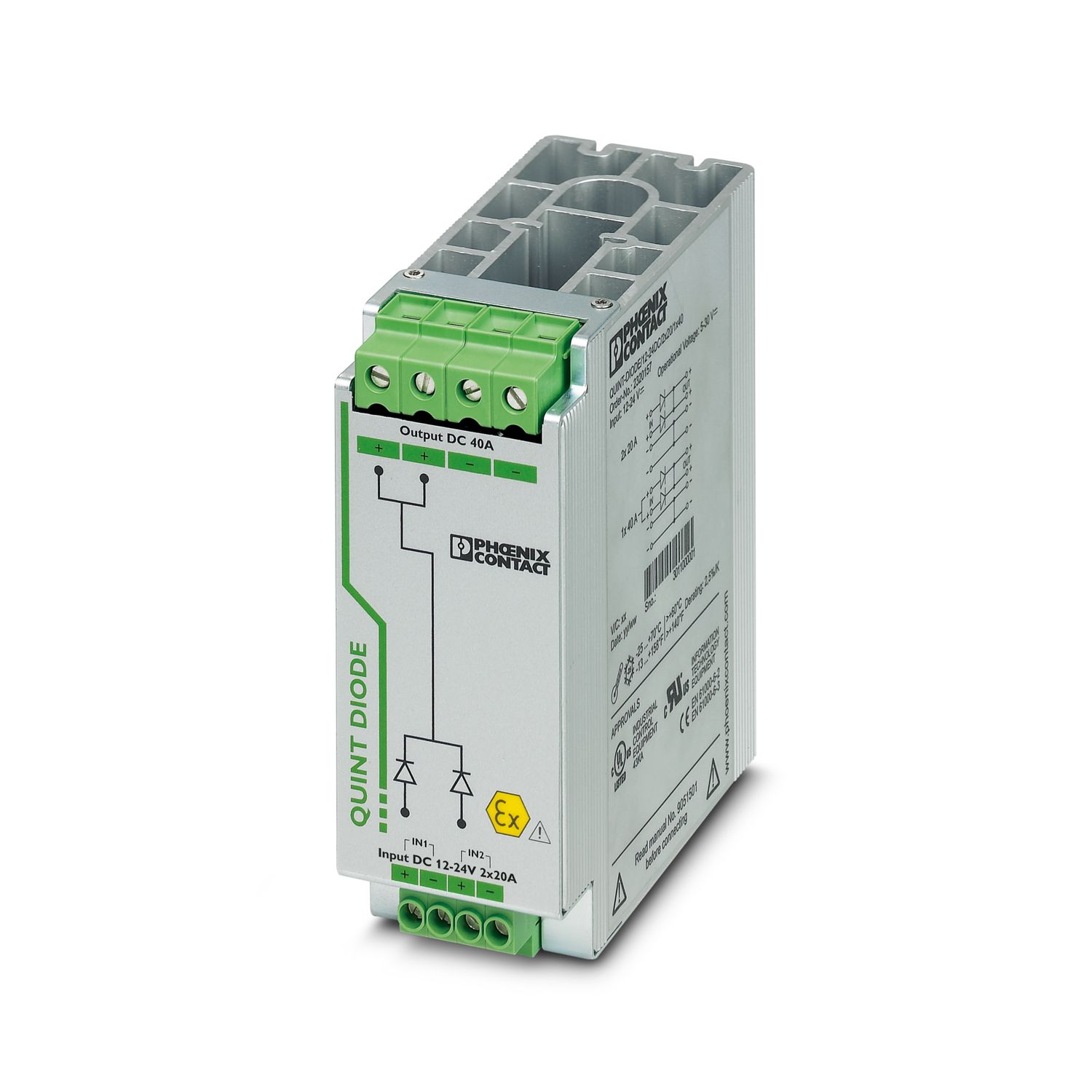

Phoenix QUINT-DIODE/48DC/2X20/1X40-Redundant Module 2320160,DIN Rail Diode Module 48V DC/2x 20 A or 1x 40 A. Up to the connected equipment, the redundancy is all the same.
| DC operation | |
| Rated input voltage range | 48V DC |
| Input Voltage Range | 30V DC ... 56V DC |
| Supply Voltage | DC |
| prevents polarity reversal | <is 120V |
| Rated input current (IN) | 2x 20 A (-25°C ... 60 °C) |
| 1x 40 A (-25°C ... 60 °C) | |
| Maximum current Imax | 2x 30 A (-25°C ... 40 °C) |
| 1x 60 A (-25°C ... 40 °C) | |
| Transient overvoltage protection | varistor |
| voltage drop, input/output | 0.7V |
| Rated input voltage range | 48V DC |
| Input Voltage Range | 30V DC ... 56V DC |
| DC input voltage range | 30V DC ... 56V DC |
| efficiency | > 97% |
| Rated output voltage | UIn- 0,7V |
| Rated output current (IN) | 40 A (increased power) |
| 20 A (redundant) | |
| Attenuation | 60°C ... 70°C (2.5 %/K) |
| Maximum rated load power loss | 14W (IOUT= 20 A) |
| Concatenation | No |
| Attenuation | 60°C ... 70°C 2.5 %/K |
| Input | |
| Connection Mode | screw connection |
| Minimum cross section of rigid conductor | 0.2 mm² |
| Maximum cross section of rigid conductor | 6 mm² |
| flexible lead | 0.2 mm² |
| Flexible lead maximum cross section | 4 mm² |
| Minimum Wire Cross Section AWG | 12 |
| Maximum conductor cross section AWG | 10 |
| stripping length | 8mm |
| thread | M3 |
| Minimum tightening torque | 0.5 Nm |
| Maximum tightening torque | 0.6 Nm |
| Output | |
| Connection Mode | screw connection |
| Minimum cross section of rigid conductor | 0.5 mm² |
| Maximum cross section of rigid conductor | 16 mm² |
| flexible lead | 0.5 mm² |
| Flexible lead maximum cross section | 16 mm² |
| Minimum Wire Cross Section AWG | 10 |
| Maximum conductor cross section AWG | 6 |
| stripping length | 10mm |
| thread | M4 |
| Minimum tightening torque | 1.2 Nm |
| Maximum tightening torque | 1.5 Nm |
