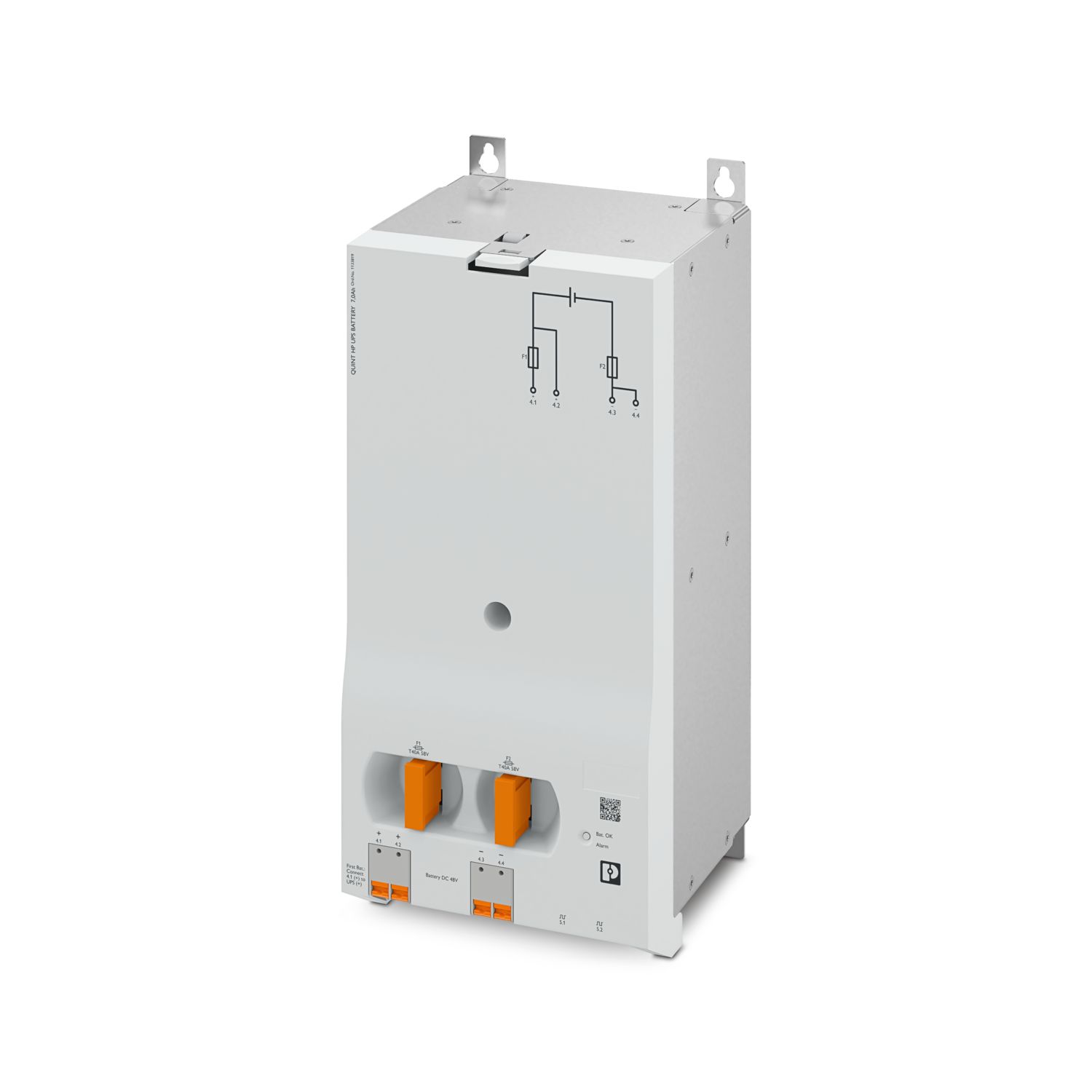

Phoenix QUINT-HP-BAT/PB/48DC/7.0AH/PT-Battery module 1133819, battery module (equipment with battery), VRLA-AGM, 48V DC, 7 Ah
| Input |
| input voltage |
48V DC (SELV) |
| Rated capacity |
7 Ah |
| charging current |
2.1 A |
| end of charging |
56V DC (20 °C) |
| Output |
| output current |
40 A |
| output fuse |
max. 40 A |
| Overview |
| and connect |
yes. |
| maximum 5 |
| Battery Type |
BB Battery BP7-12FR |
| battery technology |
VRLA-AGM |
| IQ-Technology |
is |
| Maximum commissioning interval (battery only) |
(0°C ... 20°C) |
| Last Debug (Battery Only)-Range |
(20°C ... 30°C) |
| (30°C ... 40°C) |
| memory module life (as Eurobat) |
6 (20°C) |
| Specifications and models |
Block |
| for fast charging |
is |
| temperature sensor |
is |
| Battery |
| Location |
4.x |
| connection technology |
| Location Identification |
4.1 ( ), 4.2 ( ) |
| Wire Connection |
| Connection Mode |
in-line connection |
| Rigidity |
6 mm² ... 16 mm² |
| flexibility |
6 mm² ... 16 mm² |
| flexible strip cold press head without plastic sleeve |
6 mm² ... 16 mm² |
| flexible strip cold press head with plastic sleeve |
6 mm² ... 16 mm² |
| AWG |
8 ... 6 |
| stripping length |
18mm |
| Battery |
| Location |
4.x |
| connection technology |
| Location Identification |
4.3 (-), 4.4 (-) |
