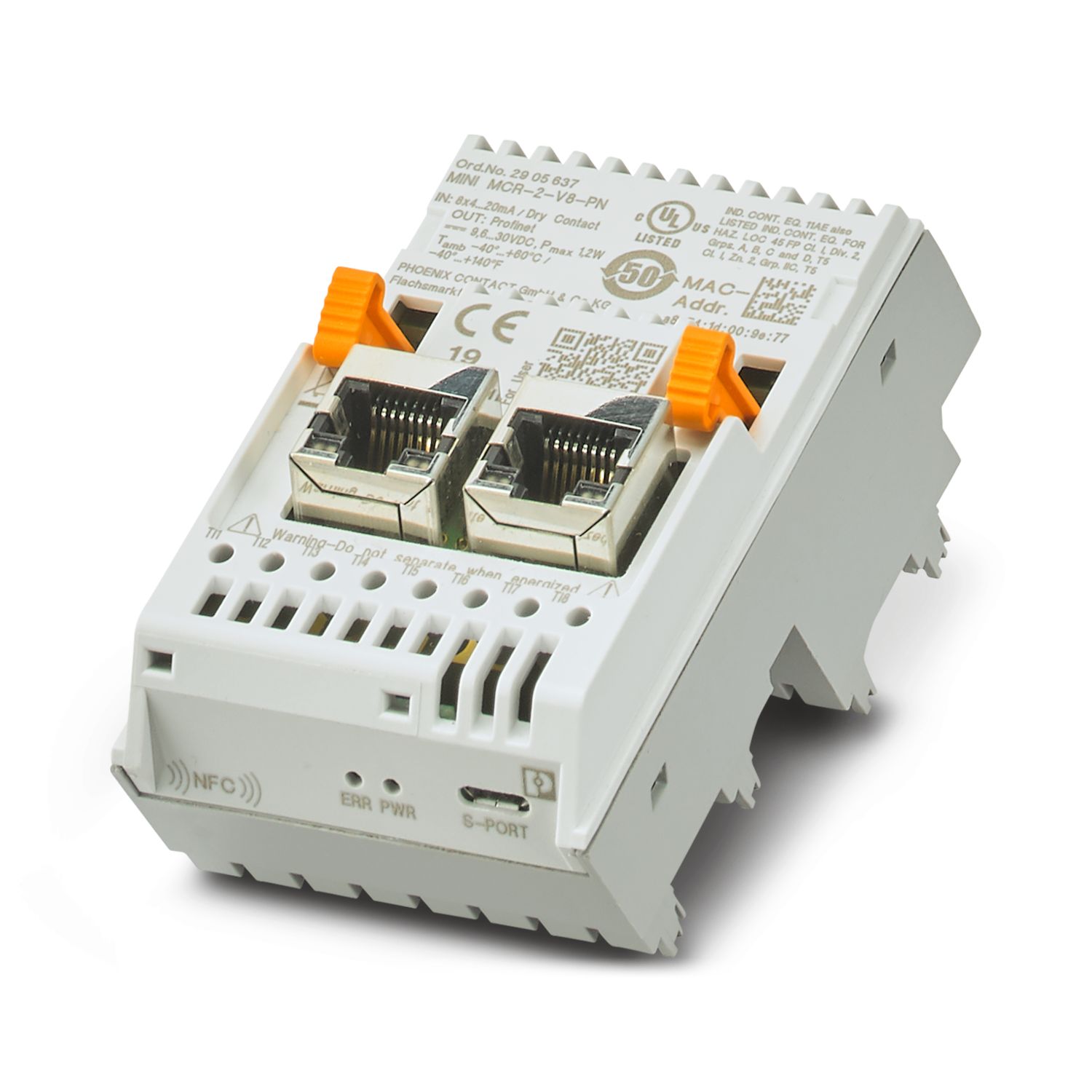

Phoenix MINI MCR-2-V8-PN-communication module 2905637, 8 MINI Analog Pro signal isolation transmitters and measurement transmitters can be easily integrated into the PROFINET network through the communication adapter.
| Product Type | Communication Module |
| product series | MINI Analog Pro |
| insulation characteristics: GB Standard | |
| Overvoltage Category | II |
| pollution level | 2 |
| Rated insulation voltage | 50Vrms |
| Test voltage, input/output/power supply | 0.5 kV |
| maximum temperature coefficient | 0.01 percent |
| Maximum transmission error | 0.1 percent |
| power supply | |
| Rated supply voltage range | 12V ... 24V |
| Supply Voltage Range | 9.6V ... 30V |
| Typical current consumption | 160 mA (At 9.6V DC) |
| power consumption | < 1500 mW |
| valid input source | Floating switch contact |
| current source | |
| Input Quantity | 8 |
| configurable/programmable | is |
| current input signal | 4 mA ... 20 mA |
| Maximum input current | 24 mA |
| input current | 50 Ω |
| Maximum input voltage | 5V |
| Supported Protocols | PROFINET RT |
| Considerations | CCC |
| MRP | |
| outputs | 2 (can be daisy chained outbound through port 2) |
| configurable/programmable | is |
| transmission speed | 100 Mbps |
| Data update rate | 15 ms |
| Output | |
| Connection Mode | RJ45 |
| Bits | 8 |
| Explosion-proof installation (EPL) | Gc |
| Div. 2 |
| Status Display | LED (green) |
| error indication | Red LED |
| width | 51.1mm |
| height | 104.1mm |
| depth | 61mm |
| color | gray (RAL 7042) |
| Shell Material | PBT 7 % GF V0 |
| environmental conditions | |
| protection level | IP20 (anti-touch protection) |
| Ambient temperature (operation) | -40°C ... 55°C |
| ambient temperature (storage/transport) | -40°C ... 70°C |
| elevation | 4000 m |
| Allowable humidity (operating) | 5%... 95% |
| Permissible humidity (storage/transportation) | 5%... 95% |
