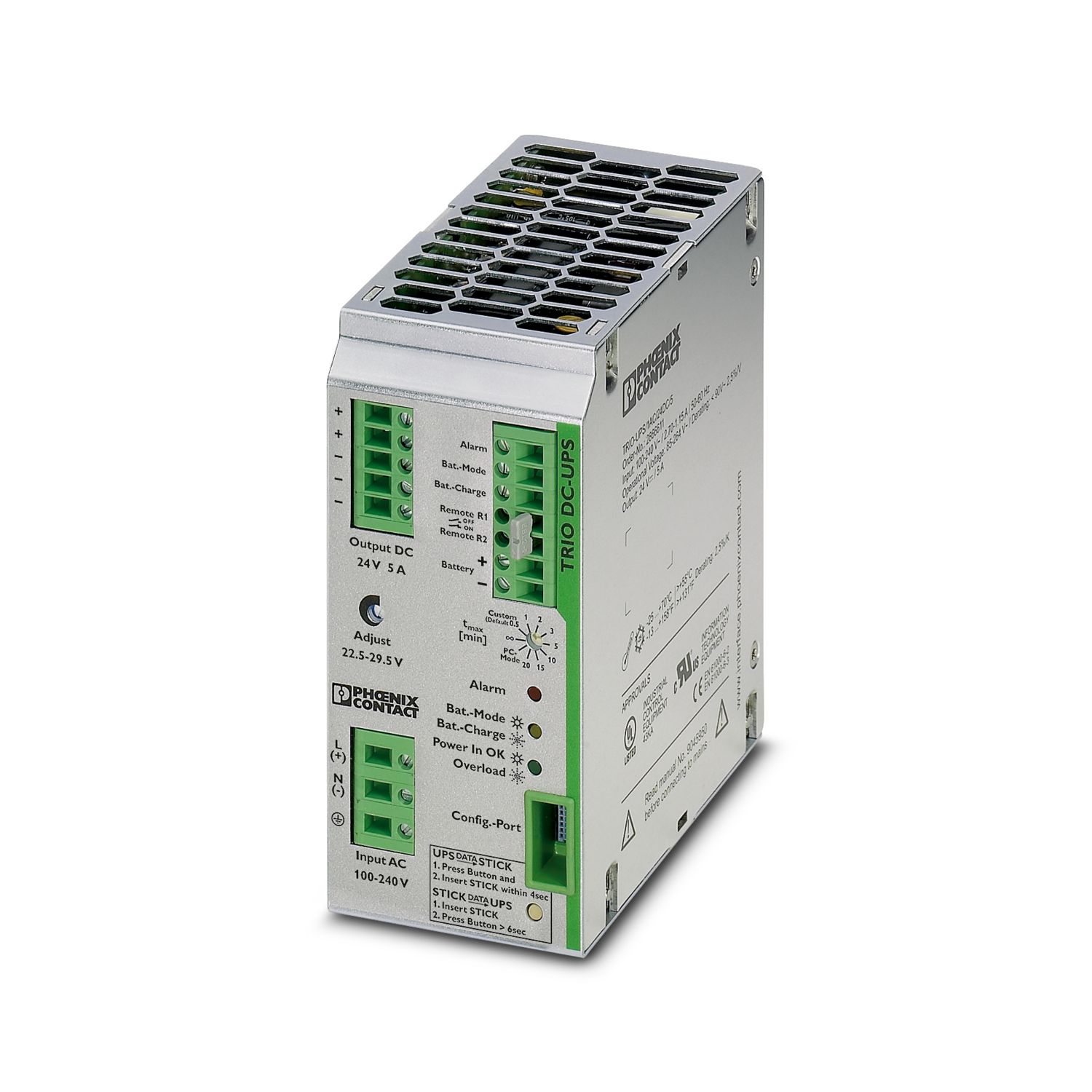

Phoenix TRIO-UPS/1AC/24DC/ 5-Uninterruptible power supply 2866611, uninterruptible power supply with built-in power module. For leaded AGM battery modules MINI-BAT/24/DC/1.3 AH, QUINT-BAT/24DC 3.4 AH... 12 AH rated capacity. Input: 1 phase, output: 24V DC/5 A. Screw connection technology
| DC operation |
| input voltage |
24V DC |
| Rated input voltage range |
100V AC ... 240V AC |
| Input Voltage Range |
85V AC ... 264V AC (attenuation <90V AC: 2.5V) |
| 100V DC ... 350V DC (UL508: 100 ... 250 V) |
| AC input voltage range |
85V AC ... 264V AC (attenuation <90V AC: 2.5V) |
| DC input voltage range |
100V DC ... 350V DC (UL508: 100 ... 250 V) |
| Supply Voltage |
AC/DC |
| Impulse current |
< 44 A (< 1.3 A2s) |
| impulse current integral (I2t) |
< 1.3 A2s |
| AC frequency range |
45Hz ... 65Hz |
| DC Frequency Range |
0Hz |
| grid buffer time |
See Graph |
| buffer time |
20 min (5 A) |
| rotary selector switch |
can be set: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; PC mode |
| power consumption |
0.95 A (230V AC) |
| 1.1 A (230V AC max) |
| 1.7 A (120V AC) |
| 1.8 A (max. 120V AC) |
| protection circuit |
transient surge protection; varistor |
| power factor (cos phi) |
about 0.5 |
| Typical Response Time |
150 ms (230V AC) |
| 200 ms (120V AC) |
| input fuse |
6.3 A (slow fuse, internal) |
| Allowable Spare Fuses |
B6 B10 B16 |
| recommend use |
6 A ... 16 A (characteristics B, C, D, K) |
| efficiency |
> 88% (230V AC, network operation) |
| > 86% (120V AC, network operation) |
| > 86% (battery operated) |
| Rated output voltage |
24V DC |
| output voltage (USet) setting range |
22.5V DC ... 29.5V DC (network mode; buffer mode, depending on the battery voltage 27.9V DC ... 19.2V DC) |
| Rated output current (IN) |
5 A (-25°C ... 55 °C) |
| Output Current Limit |
max. 6 A (main line operation) |
| bridge time |
3600 s |
| Attenuation |
55°C ... 70°C (2.5 %/K) |
| feedback voltage resistance |
35V DC |
| output |
< 35V DC |
| control deviation |
<1% (load change, static 10%... 90%) |
| residual wave |
< 10 mVSS |
| output power |
120W |
| Rated power |
120W |
| peak switching voltage rated load |
< 25 mVSS |
| maximum no-load power consumption |
2W |
| Maximum rated load power loss |
16W (230V AC) |
