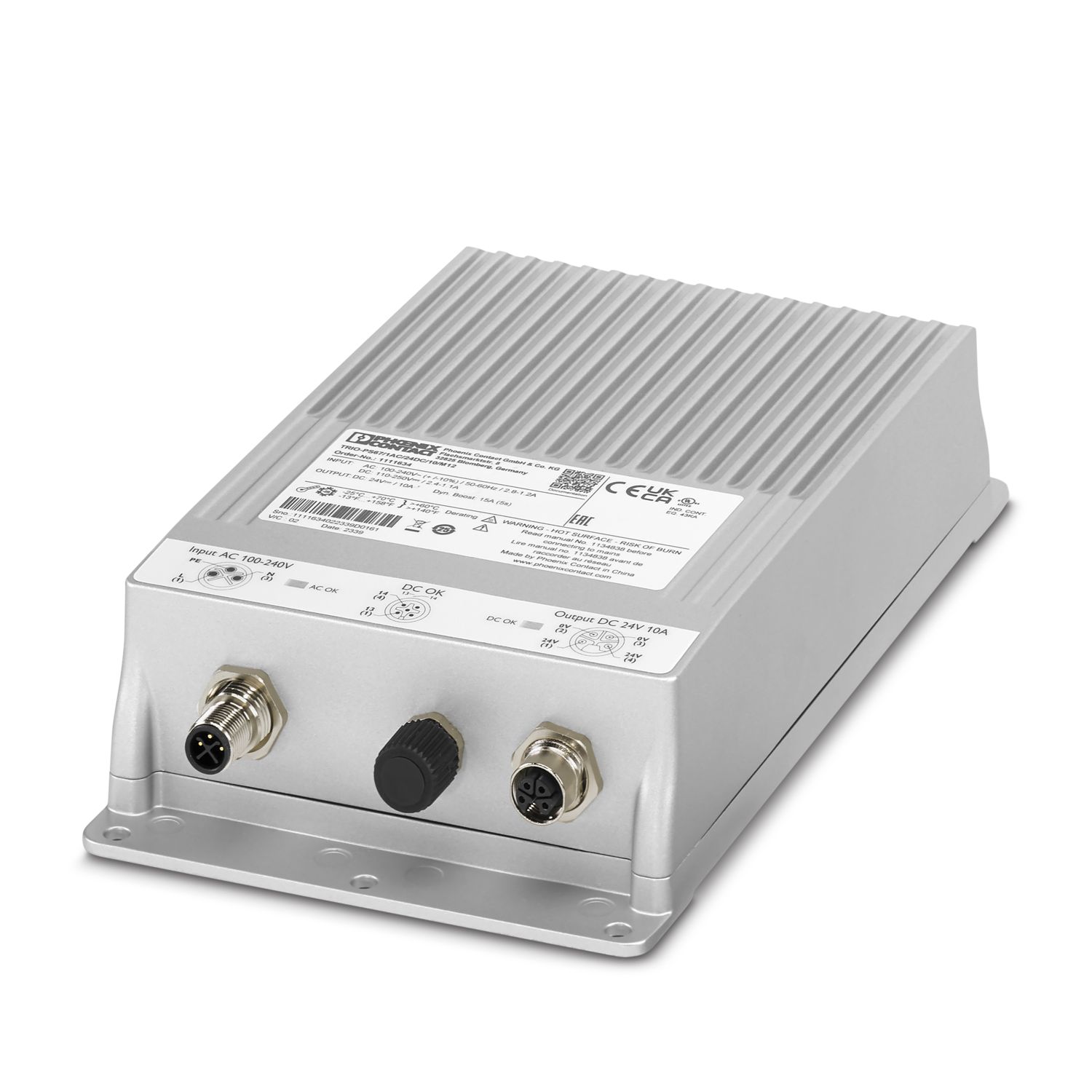

Phoenix TRIO-PS67/1AC/24DC/8/INC-power 1065976, primary switching power supply TRIO POWER, 7/8 & Prime; circular connector, wall-mounted, input: 1 phase, output: 24V DC/8 A
| AC operation |
| Power System Configuration |
star network (TN,TT,IT (PE)) |
| Rated input voltage range |
100V AC ... 240V AC |
| Input Voltage Range |
100V AC ... 240V AC ±10% |
| turn-on voltage |
> 75V AC |
| Shutdown Voltage |
< 70V AC |
| maximum dielectric strength |
≤ 300V AC 15 s |
| National Grid Typical Voltage |
120V AC |
| 230V AC |
| Supply Voltage |
AC |
| Impulse current |
≤ 25 A (typical) |
| impulse current integral (I2t) |
< 0.5 A2s |
| Surge current limit |
Typical 25 A (after 1 ms) |
| AC frequency range |
50Hz ... 60Hz ± 10% |
| frequency range (fN) |
50Hz ... 60Hz ± 10% |
| grid buffer time |
> 15 ms (120V AC) |
| > 15 ms (230V AC) |
| power consumption |
2.2 A (100V AC) |
| 0.9 A (240V AC) |
| Rated power consumption |
285 VA |
| protection circuit |
transient surge protection; varistor |
| power factor (cos phi) |
> 0.93 |
| Suction time |
< 1 s |
| input fuse |
6.3 A (built-in (equipment protection)) |
| recommend use |
6 A ... 16 A (US/CAN: branch circuit protection 20 A) (characteristics B, C, D, K or similar) |
| PE discharge current |
< 3.5 mA |
| DC operation |
| Rated input voltage range |
110V DC ... 250V DC |
| Input Voltage Range |
110V DC ... 250V DC ±10% |
| turn-on voltage |
≥ 95V DC |
| Shutdown Voltage |
< 95V DC |
| Supply Voltage |
DC |
| grid buffer time |
> 15 ms |
| power consumption |
1.9 A (110V DC) |
| 0.8 A (250V DC) |
| power factor (cos phi) |
> 93 |
| efficiency |
Typical 91% (120V AC) |
| Typical 92% (230V AC) |
| Rated output voltage |
24V DC ±1 % (SELV) |
| Rated output current (IN) |
8 A |
| Dynamic Boost (IDyn.Boost) |
12 A (5 s) |
| Attenuation |
> 60°C ... 70°C (2.5 %/K) |
| feedback voltage resistance |
≤ 35V DC |
