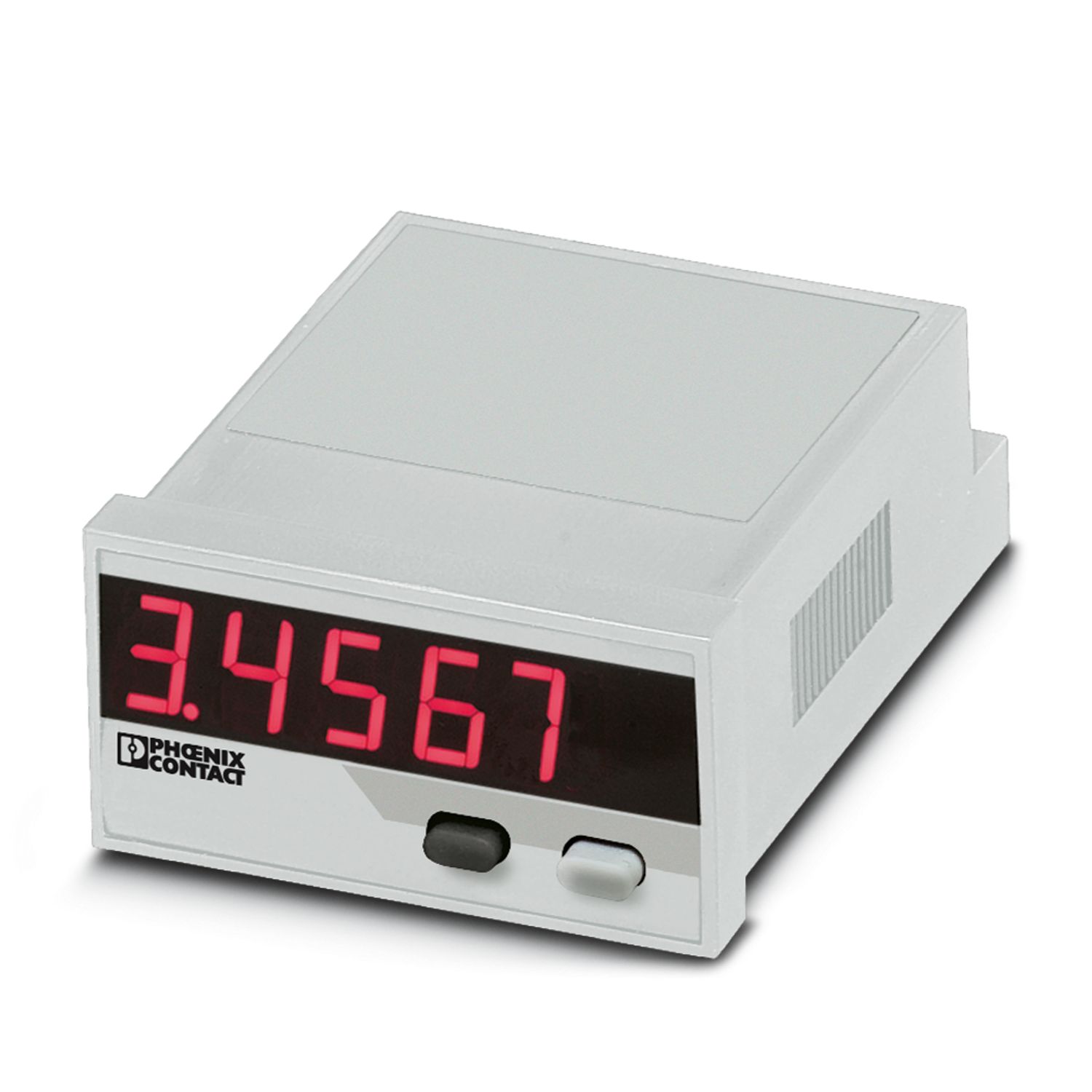

Phoenix MCR-SL-D-U-I-digital display meter 2864011,MCR digital display meter, used for standard signal measurement and display, 5-digit display
| Product Type | Digital Display |
| configuration | Keyboard |
| Function | |
| configuration | Keyboard |
| rated conditions | 1.46W |
| test voltage, input/power supply | 500Vrms(50/60Hz, 1 minute) |
| maximum temperature coefficient | < 0.07 %/K |
| Maximum transmission error | ± 0.1 % (of terminal value) |
| power supply | |
| Supply Voltage Range | 10V DC ... 30V DC |
| Maximum current consumption | 50 mA |
| power consumption | ≤ 1.5W |
| signal | |
| voltage input signal | 0V ... 10V |
| 2V ... 10V | |
| Maximum voltage input signal | 30V DC |
| current input signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Maximum current input signal | 50 mA |
| Toggle level "1" signal | 4V DC ... 30V DC |
| toggle level "0" signal | 0V DC ... 2V DC |
| input voltage | > 1 MΩ |
| input current | about 100 Ω at 5mA/about 70 Ω at 20mA |
| resolution input (voltage) | 1 mV |
| resolution input (current) | 2 µA |
| system humidity suppression | digital filtering 50/60Hz |
| Input Latch Signal | Stop Display |
| measurement rate | 0.1s-1/ 0. 5S-1 |
| signal | |
| D/A Converter Resolution | 14. |
| Display Bits | 5 |
| Display | 7 segment LED;8mm; red |
| Connection Mode | screw connection |
| stripping length | 8mm |
| thread | M3 |
| Rigid conductor cross section | 0.14 mm² ... 1.5 mm² |
| Flexible Wire Cross Section | 0.14 mm² ... 1.5 mm² |
| Attachable Guide Cross Section AWG | 26 ... 16 |
| width | 48mm |
| height | 24mm |
| depth | 68mm |
| Shell Material | Macrolon 2405 |
Phoenix MCR-SL-D-U-I-digital display table 2864011
