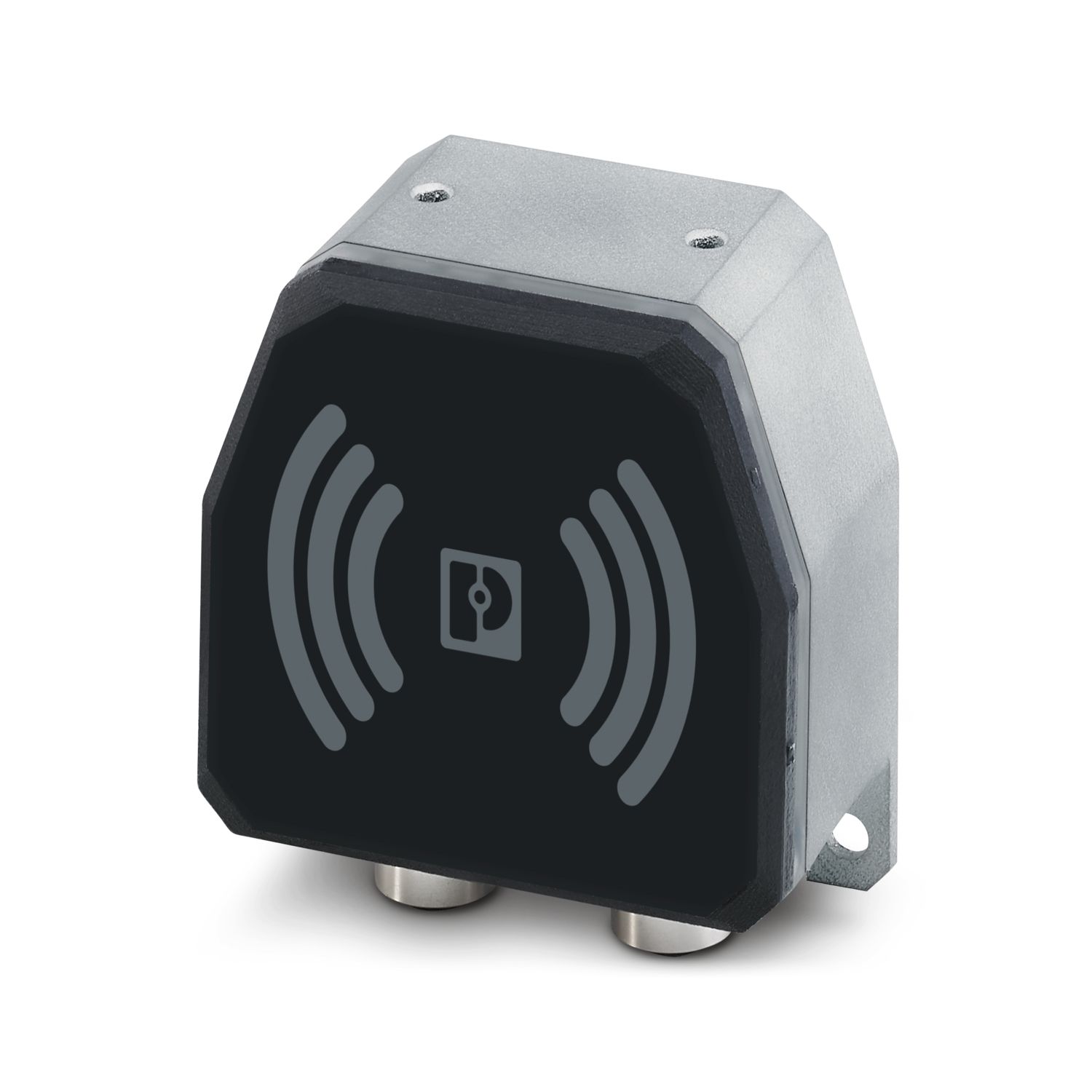

Phoenix NEARFI PD 2A ETH R-inductive coupler 1234225,NearFi remote contactless power supply and real-time Ethernet coupler, 50W (US),100 Mbps, range ≤ 10mm,M12 screw connection, IP65, can be used in combination with NEARFI PD 2A ETH B. Not compatible with NEARFI 2200 (new product)

Product Type inductive coupler
Application Ethernet
Power
MTTF 115 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
60 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
27 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
insulation characteristics
Overvoltage Category II
pollution level 2

Power
protection circuit Short circuit/overload protection

Power
Connection Mode M12 hole type, A code

data: Ethernet interface, 100Base-T(X), IEEE 802.3 compliant
transmission speed 100 Mbps
Connection Mode M12 hole type, D code
Connection Method Considerations auto-negotiation and auto-crossover, fast start (FSU,<500 ms)
Typical bit error rate≤ 10-12
Channels 1
Transmission Length 100 m (shielded twisted pair)
transmission medium copper cable
Supported Protocols protocol transparency: PROFINET, PROFINET IRT, PROFIsafe, EtherCAT®, Modbus/TCP, Powerlink, TSN, etc.
inductance: power transmission
Suction time < 450 ms (ETH full-duplex operation mode)
minimum 0mm
≤ 10 mm (at 55°C)
≤ 12 mm (at 25°C)
center offset ± 5mm
can connect the wireless module 1 (base coupler)
Frequency Range 100 kHz ... 148.5 kHz (power transmission)
Wireless
can connect the wireless module 1 (base coupler)
frequency 60 GHz
Frequency Range 57 GHz ... 64 GHz (data transmission)
transmission power < 10 mW (EIRP)
delay time ≤ 1 & micro;s (typical)
1234225
