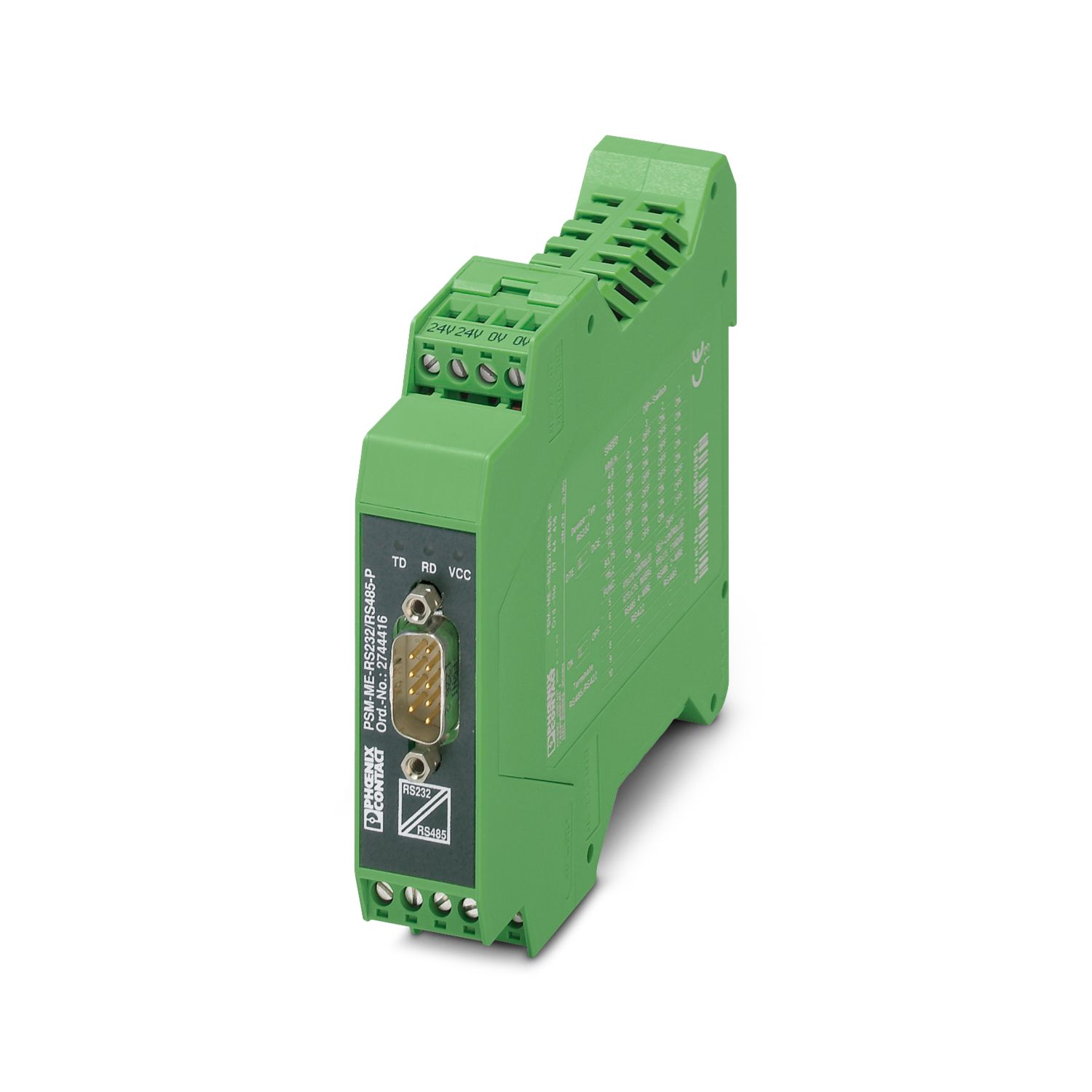

Phoenix PSM-ME-RS232/RS485-P-interface converter 2744416, interface converter, convert RS-232 (V.24) to RS-422 (V.11), with electrical isolation, 2 channels, rail mounted

Product Type Interface Interface Converter
Application RS-232
RS-422
RS-485
MTTF 1654 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
746 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
310 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
MTBF 10 years (Telcordia standard, temperature 40°C, duty cycle 100 %(24 hours a day, 7 days a week))
insulation characteristics
pollution level 2

electrical isolation VCC // V.24 (RS-232) // RS-485
rated conditions 2.04W
test voltage data interface/power supply 1.5 kV AC
1.5 kV AC
Test Voltage Data Interface 1.5 kV AC
Power
Supply Voltage Range 18V AC/DC ... 30V AC/DC (via plug-in COMBICON screw terminal block)
Rated supply voltage 24V AC/DC
Typical current consumption 85 mA (24V DC)
Maximum current consumption 100 mA

Power
single wire/wiring point, rigid 0.2 mm² ... 2.5 mm²
single wire/wiring point, flexible 0.2 mm² ... 2.5 mm²
WIRE CROSS SECTION, FLEXIBLE [AWG] 24 ... 12
Tightening torque 0.56 Nm ... 0.79 Nm

Interface RS-232/-485
bit distortion ≤ 5%
bit delay ≤ 2.5 µs
signal Modbus
transmission channel 2(1/1)RxD, TxD, Full Duplex
data: RS-232 interface, according to ITU-T V.28, EIA/TIA-232, DIN 66259-1
serial transmission rate 1.2;2.4;4.8;7.2;9.6;19.2;31.25;38.4;57.6;75;93.75;115.2 kbps
Connection Mode D-SUB-9 male connector
Pin Distribution DTE/DCE switching through switches
Transmission Length 15 m (shielded twisted pair)
single wire/wiring point, flexible 0.2 mm² ... 2.5 mm²
AWG stranded wire, flexible 12
AWG Wire Minimum Cross Section, Flexible 24
Supported Protocols Transparency Agreement
data: RS-422 interface according to ITU-T V.11,EIA/TIA-422,DIN 66348-1
serial transmission rate 1.2;2.4;4.8;9.6;19.2;38.4;57.6;75;93.75;115.2 kbps
Connection Mode pluggable screw connection
Transmission Length 1200 m (shielded twisted pair)
terminal resistance 390 Ω
150 Ω
390 Ω (connectable)
single wire/wiring point, flexible 0.2 mm² ... 2.5 mm²
AWG stranded wire, flexible 13
AWG Wire Minimum Cross Section, Flexible 24
Supported Protocols Transparency Agreement
data: RS-485 interface, according to EIA/TIA-485,DIN 66259-1
serial transmission rate 1.2;2.4;4.8;9.6;19.2;38.4;57.6;75;93.75;115.2 kbps
Connection Mode pluggable screw connection
Transmission Length 1200 m (shielded twisted pair)
terminal resistance 390 Ω
150 Ω
390 Ω (connectable)
single wire/wiring point, flexible 0.2 mm² ... 2.5 mm²
AWG stranded wire, flexible 14
AWG Wire Minimum Cross Section, Flexible 24
data direction switching automatic control or via RTS/CTS
Supported Protocols Transparency Agreement
2744416
