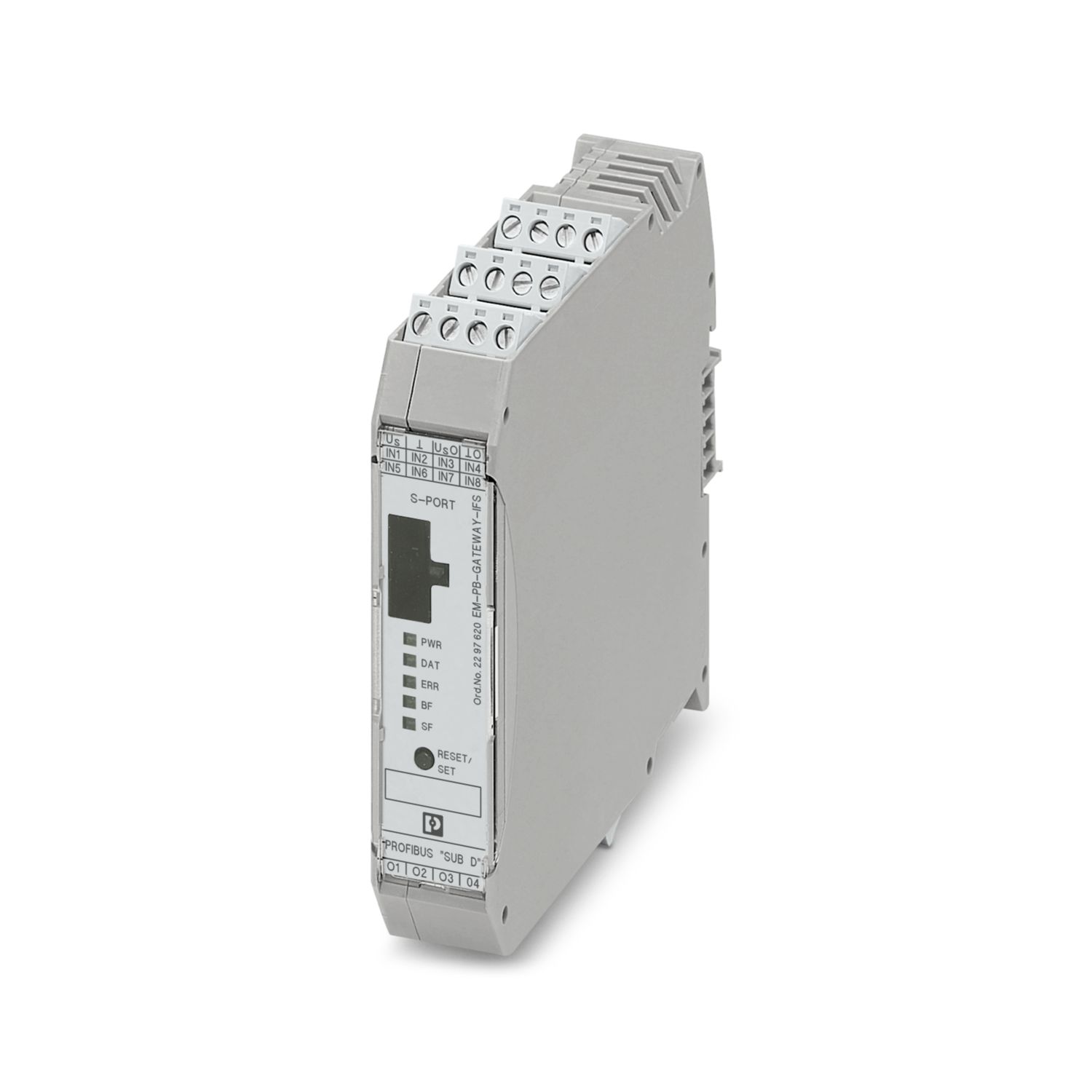

Phoenix EM-PNET-GATEWAY-IFS-data interface 2904472 is used to connect up to 32 Interface system devices to the gateway of the upper-level controller through the PROFINET. Interface system devices can be connected to the gateway via DIN rail connectors. Provide DIN rail connector.
| Product Type | Gateway/Proxy Server |
| Mode of operation | 100% operating factor |
| insulation characteristics | |
| Overvoltage Category | III |
| pollution level | 2 |
| power supply | |
| Rated control circuit supply voltage US | 24V DC -20 % ... +25% |
| Rated control supply current IS | 85 mA (positive load current at output) |
| protection circuit | polarity protection |
| surge protection | |
| digital quantity | |
| number. | 8 |
| Rated operating voltage UC | 24V DC ±20% |
| Rated operating current IC | 3 mA |
| protection circuit | polarity protection |
| surge protection | |
| digital quantity: switch output | |
| number. | 4 |
| Rated output voltage USO | 24V DC |
| Residual pressure | 1V |
| maximum switching voltage | 23V DC (output UB- Uresid.) |
| maximum switching current | 500 mA (per output) |
| protection circuit | Parallel polarity protection, please pay attention to the fuse (F fuse with a maximum of 8 A) |
| power supply | |
| Connection Mode | in-line connection |
| stripping length | 10mm |
| Rigid conductor cross section | 0.2 mm² ... 2.5 mm² |
| Flexible Wire Cross Section | 0.2 mm² ... 2.5 mm² |
| Attachable Guide Cross Section AWG | 24 ... 12 |
| programming connection | |
| Connection Mode | S-PORT (socket) |
| connection quantity | 1 |
| Bits | 12 |
| INTERFACE system | |
| Connection Mode | DIN Rail Connectors |
| connection quantity | 1 |
| Bits | 5 |
| PROFINET | |
| Connection Mode | RJ45 |
| connection quantity | 2 |
| data: network interface | |
| Communication Transport Protocol | PROFINET |
| Connection Mode | RJ45 female connector |
| connection quantity | 2 |
| transmission speed | 10 Mbps |
| 100 Mbps | |
| Data: Service Interface | |
| Communication Transport Protocol | Interface-System |
| Connection Mode | S-PORT (socket) |
| connection quantity | 1 |
| Bits | 12 |
| data: device bus | |
| Communication Transport Protocol | Interface-System |
| Connection Mode | DIN Rail Connectors |
| connection quantity | 1 |
| Bits | 5 |
| transmission speed | 76.8 kbps |
| width | 22.5mm |
| height | 107.8mm |
| depth | 113.8mm |
| color | gray (RAL 7042) |
| Shell Material | Non-reinforced polyamide PA |
Phoenix EM-PNET-GATEWAY-IFS-Data Interface 2904472
