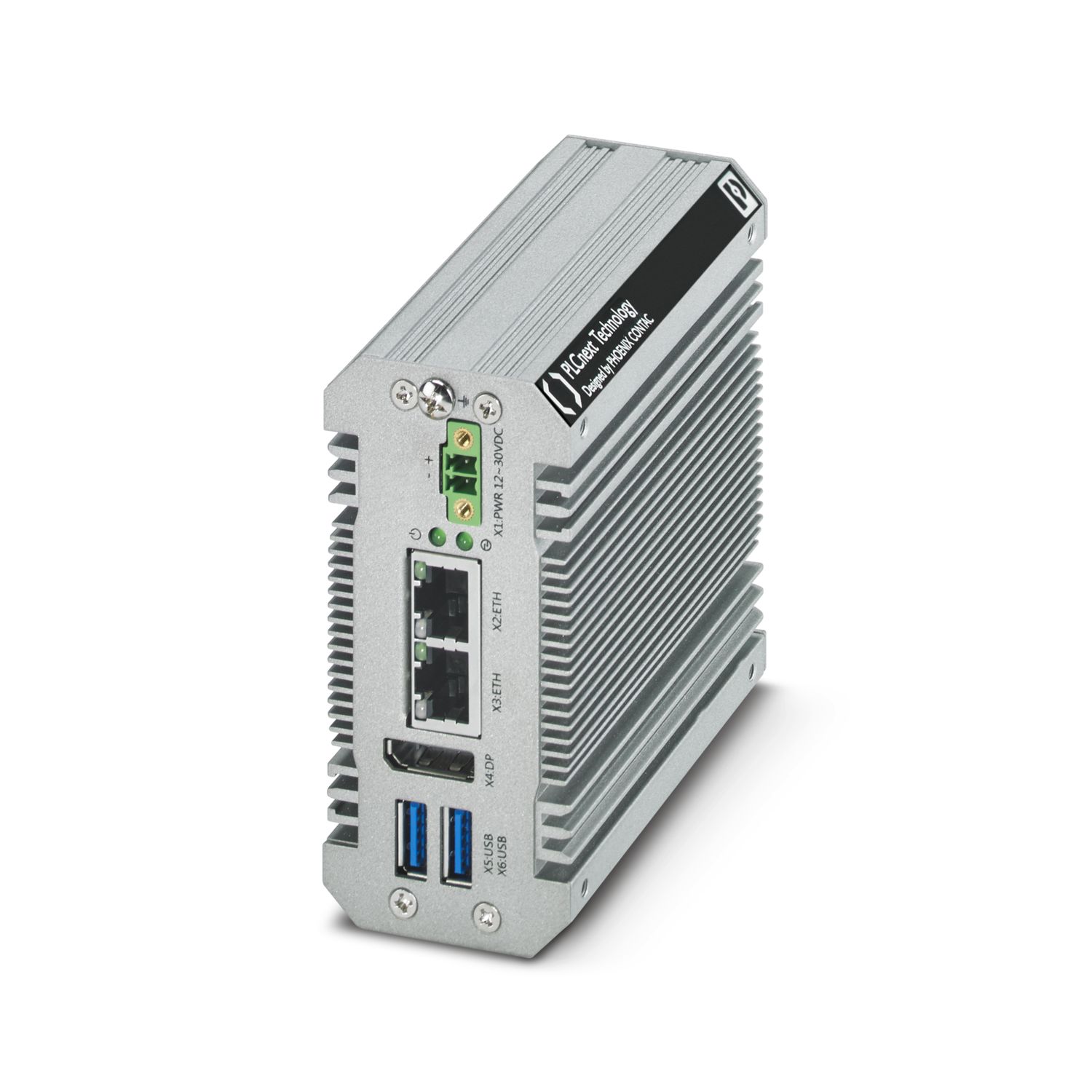

Phoenix EPC 1502-Edge Device 1185416 PLCnext Industrial Edge computers with Intel® Celeron® N3350 processors. This small programmable edge computer supports IEC61131-3, MATLAB Simulink, C/C, and is ideal for protocol conversion, data acquisition, and cloud computing.
| Product Type | controller |
| Product Series | PLCnext Control |
| type | Stand-alone |
| Computer Parameters | |
| Processor | Intel® Celeron® N3350 1.10 GHz |
| Trusted Platform Module | fTPM 1.2 (Encryption Technology Non-Chinese) |
| main memory | 2GB LPDDR4 |
| data storage system | built-in eMMC,32GB,~ 15GB available |
| heat dissipation mode | passive heat dissipation |
| Display | |
| Display Type | None |
| reserved data storage | does not support remaining data |
| is programmable when | high-level language |
| IEC 61131-3 | |
| IEC 61131 runtime system | |
| Program Memory | 8 Mbyte |
| data storage system | 12 Mbyte |
| Function | |
| Supported Programming Languages | Instruction List (IL) |
| Symbolic Flowchart (SFC) | |
| Ladder Diagram (LD) | |
| Function Block Diagram (FBD) | |
| Structure Text (ST) | |
| C | |
| C# | |
| Java | |
| Python® | |
| Simulink® | |
| System Requirements | |
| Engineering Design Tools | PLCnext Engineer |
| Eclipse® | |
| Visual Studio® | |
| MATLAB®/ Simulink® | |
| power supply | |
| supply voltage | 24V DC |
| Interface | 1x DP |
| 2x USB 3.0 | |
| LAN Chip Kit | Intel® I210-AT |
