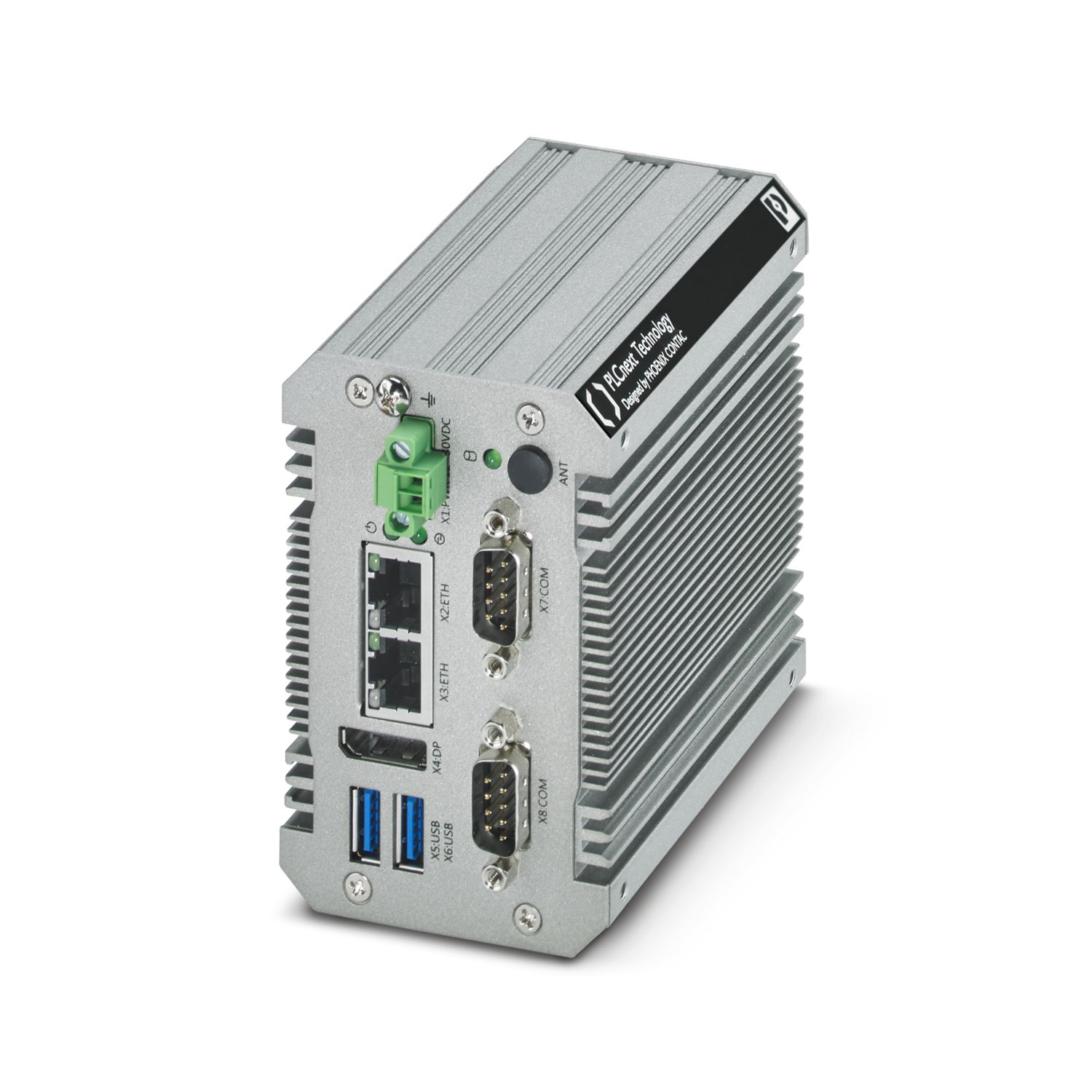

Phoenix EPC 1522-Edge Device 1185423 PLCnext Industrial Edge computers with Intel® Celeron® N3350 processors. This small, programmable edge computer supports IEC61131-3, MATLAB Simulink, and C/C ++, making it ideal for protocol conversion, data acquisition, and cloud computing.
| Product Type | controller |
| Product Series | PLCnext Control |
| type | Stand-alone |
| Computer Parameters | |
| Processor | Intel® Celeron® N3350 1.10 GHz |
| Trusted Platform Module | fTPM 1.2 (Encryption Technology Non-Chinese) |
| main memory | 4GB LPDDR4 |
| data storage system | 128GB M.2-SSD,~ 111GB available |
| heat dissipation method | passive heat dissipation |
| Display | |
| Display Type | None |
| reserved data storage | does not support remaining data |
| is programmable when | high-level language |
| IEC 61131-3 | |
| IEC 61131 runtime system | |
| Program Memory | 8 Mbyte |
| data storage system | 12 Mbyte |
| Function | |
| Supported Programming Languages | Instruction List (IL) |
| Symbolic Flowchart (SFC) | |
| Ladder Diagram (LD) | |
| Function Block Diagram (FBD) | |
| Structure Text (ST) | |
| C++ | |
| C# | |
| Java | |
| Python® | |
| Simulink® | |
| System Requirements | |
| Engineering Design Tools | PLCnext Engineer |
| Eclipse® | |
| Visual Studio® | |
| MATLAB®/ Simulink® | |
| Power | |
| supply voltage | 24V DC |
| Interface | 1x DP++ |
| 2x USB 3.0 | |
| 2x COM ports | |
| LAN Chip Kit | Intel® I210-AT |
| External dimensions | |
| Width/Height/Depth | 99mm / 92mm / 63mm |
| environmental conditions | |
| protection level | IP30 |
| ambient temperature (operation) | -20°C ... 50°C |
| ambient temperature (storage/transport) | -40°C ... 85°C |
| Allowable humidity (operating) | 5%... 85% (non-condensing) |
| Impact | 15g,11ms conforming to IEC 60068-2-27 |
| vibration (operation) | 1g according to EN 60068-2-6 |
Phoenix EPC 1522-Edge Equipment 1185423
