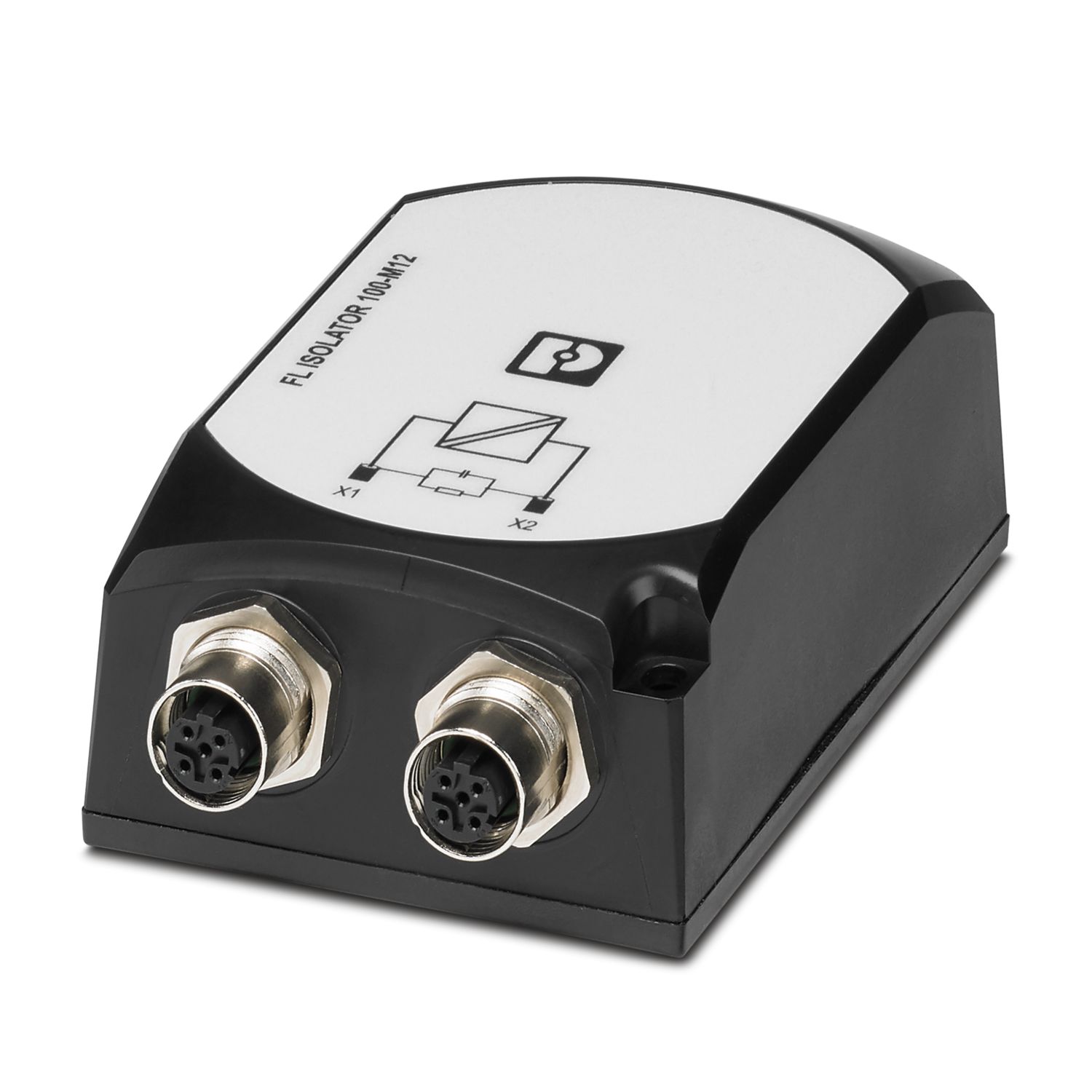

Phoenix FL ISOLATOR 100-M12-Network Isolator 2902985, a passive network isolator used for electrical isolation in Ethernet. For protection of Ethernet equipment with a maximum potential difference of 4 kV. Can be used for a maximum transfer rate of 100 Mbps. Ethernet connection via two M12 sockets (D-coded).
Product Type
Network Isolator
MTTF
18372 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
13381 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
3348 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
MTBF
38062 years (Telcordia standard, temperature 25°C,21% operation cycle (5 days a week, 8 hours a day))
12264 years (Telcordia standard, 40°C,34.25% cycle (5 days a week, 12 hours a day))
electrical isolation
port X1 // port X2
insulation voltage input/output
250Vrms
test voltage data interface/data interface
4 kV AC (50 Hz,1 min)
Power
Supply Voltage Range
passive module, no power supply required
signal
Ethernet
PROFINET
data: Ethernet interface, 10/100Base-T(X), compliant with IEEE 802.3
serial transmission rate
10/100 Mbps
Connection Mode
M12 connector, D-coded (female)
Channels
1
Tightening torque
≤ 2 Nm
Transmission Length
≤ 100 m (total length through both ports (depending on transmission rate and cable used))
Supported Protocols
transparent protocols for IPv4 and IPv6
data: Ethernet interface, 10/100Base-T(X), compliant with IEEE 802.3
Connection Mode
M12 connector, D-coded (female)
Channels
1
Dimensional drawing
width
66mm
height
91mm
depth
34mm
color (shell)
black (RAL 9005)
Identification Material (Shell)
polycarbonate
Identification Material (Lower)
PC-ABS
Shielding
Do not connect earth protection (PE)
capacitive isolation between two shield connections
meets EN 60068-2-6/IEC 60068-2-6 anti-vibration standards
vibration (running): 5g,10 ... 150Hz, 2.5 h, XYZ direction
vibration resistance conforming to IEC 61373, EN 61373
Vibration (operating),IEC: Class 1, Class B
Conforms to EN 60068-2-27/IEC 60068-2-27 impact resistance standards
impact force (operation): 15g,11 ms, half-sine shock pulse
impact force (storage/transport): 30g,18 ms, half sine shock pulse
