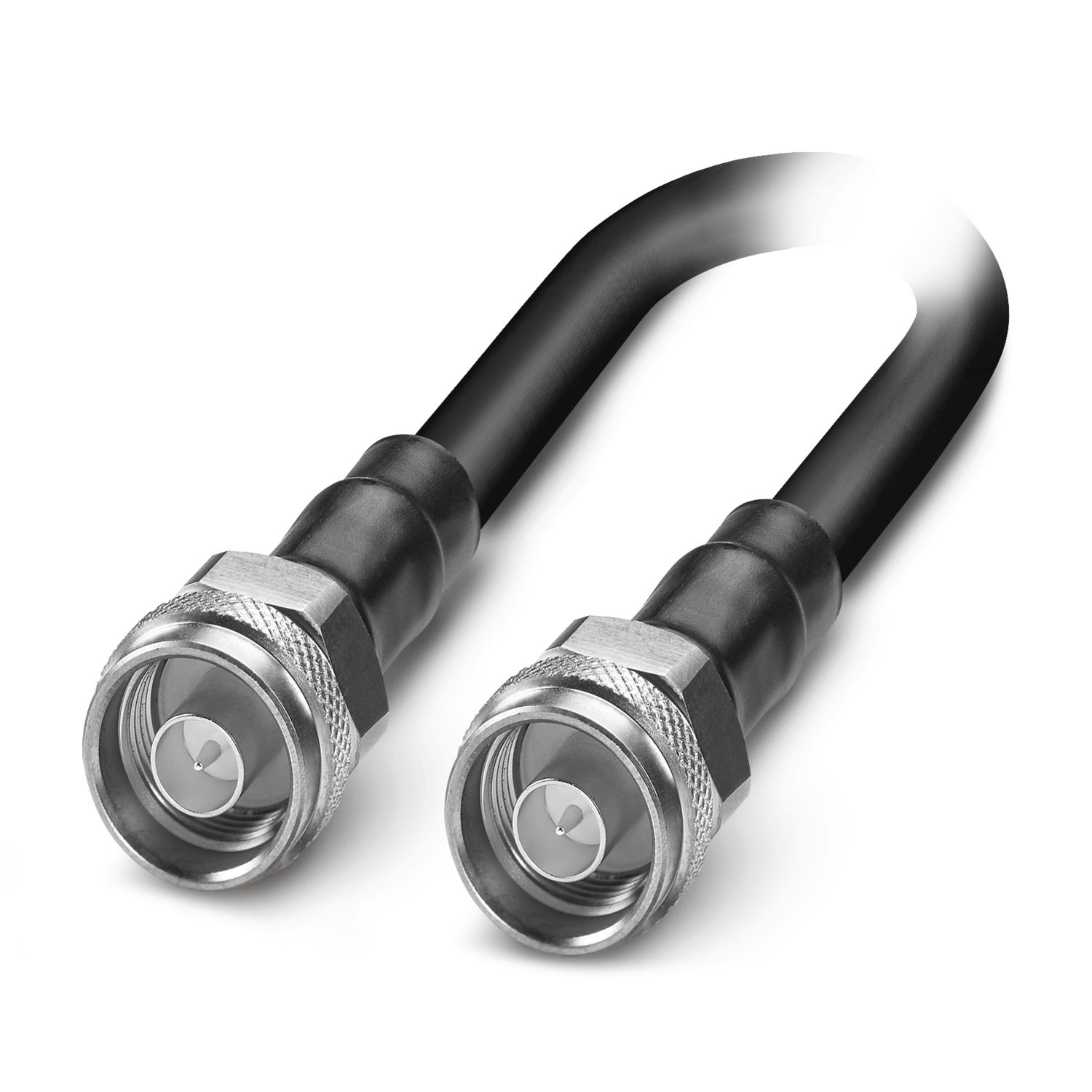

Phoenix NBC-COX-CNM/10.0-L/COX-CNM-Coaxial Cable 1340125, Coaxial Cable, 50Ω, Length: 10 m,N(m) - N(m), Cable Outer Diameter: 10.3mm, Transmission Frequency: ≤ 7.25 GHz, Typical Attenuation: 800 MHz 1.6 dB, 2.4 GHz 2.7 dB, 5.8 GHz 4.3 dB, 7.25 GHz 5 dB
| Product Type |
Pre-installed data cable |
| type |
coaxial |
| Bits |
1 |
| Packaging Type |
PE bag |
| Shielding |
have |
| cable outlet |
straight head |
| Frequency Range |
0.1 GHz ... 7.25 GHz |
| insulation resistance |
≥ 5 GΩ (according to environmental test Riso ≥ 200 MΩ) |
| wave impedance |
50 Ω |
| Maximum conductor resistance |
4.5 Ω/km |
| flame retardant rating, according to UL 94 |
ja |
| Shell Material |
CuZn |
| Shell surface material |
CuSnZn3 |
| Contact Material |
CuZn |
| Material Contact Surface |
Cu2Ag5 |
| O-ring material |
silicon |
| outer sheath, material |
FRNC |
| Wire Material |
Copper |
| connection 1 |
| type |
plug straight coaxial N |
| Lock Type |
screw locking |
| Shielding |
have |
| Insertion/unplugging cycle |
> 100 |
| protection level |
IP65/IP67 |
| Connection 2 |
| type |
plug straight coaxial N |
| Lock Type |
screw locking |
| Shielding |
have |
| Identification Materials |
copper alloy (shell material) |
| CuSnZn3 (housing surface) |
| silicon (O-ring) |
| copper alloy (contact) |
| Cu2Ag5 (contact surface) |
| PTFE (insulation) |
| Insertion/unplugging cycle |
100 |
| protection level |
IP65/IP67 |
| Cable Length |
10.00 m |
| Coaxial, 10.3mm,FRNC,50 Ω [Koaxial] |
| Cable Type |
Coaxial, 10.3mm,FRNC,50 Ω |
| cable type (abbreviation) |
Koaxial |
| Cable outer diameter |
10.30mm |
| outer sheath, material |
FRNC |
| outer sheath, color |
Black |
| optical fiber |
| Attenuation |
1.6 dB (800 MHz) |
| Test Specification |
| Specifications |
DIN EN 60966-1 |
| volume resistance R1 |
1.00 mΩ |
| insulation resistance, adjacent contacts |
5 GΩ |
| High power frequency withstand voltage |
2500.00V AC |
| Test Specification |
| Specifications |
DIN EN 60512-3-1 |
| Test Specification |
| Specifications |
DIN EN 60512-4-1 |
| cold stress |
DIN EN 60068-2-14 Test Na |
| corrosion stress |
yes, ISO 22479 compliant |
| Test Specification |
| Specifications |
DIN EN 60068-2-6 |
| frequency |
10-2000-10Hz |
| scan rate |
1 octave/min |
| amplitude |
0.75mm |
| acceleration |
100.00 m/s² |
| Test Duration |
2.50 h |
