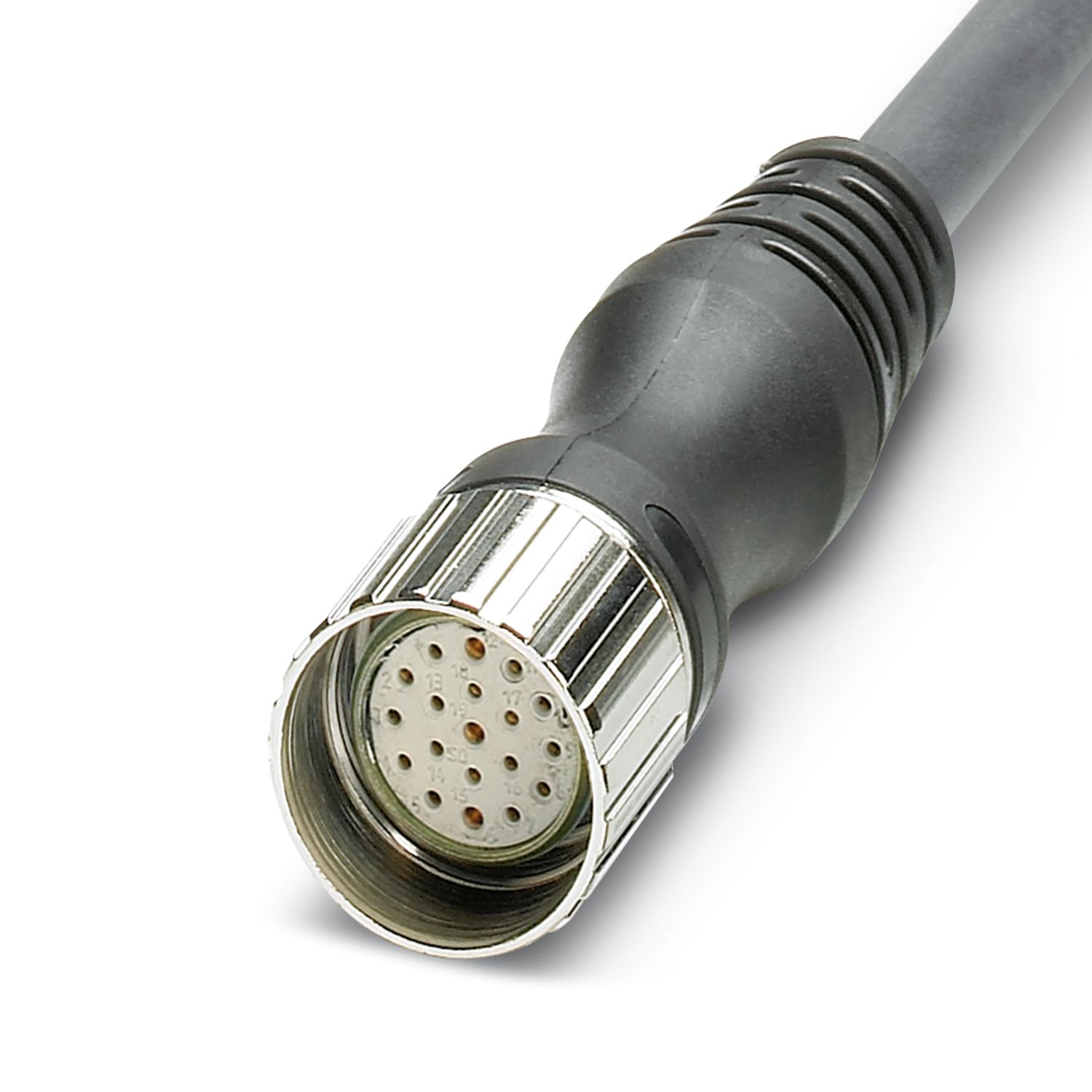

| Cable Length |
30 m |
| PUR/PVC Black [PUR] |
| Dimensional drawing |
|
| Cable Weight |
183.7 kg/km |
| UL AWM |
20549 (80°C/300 V) |
| Bits |
19 |
| Shielding |
None |
| Cable Type |
PUR/PVC Black [PUR] |
| wire structure signal line |
28x 0.15mm |
| AWG, signal wire |
20 |
| wire structure, voltage power supply |
56x 0.15mm |
| AWG Power Supply |
17 |
| Wire Cross Section |
16x 0.5 mm² (signal line) |
| 3x 1 mm² (power cord) |
| wire diameter, including insulation |
1.5mm ± 0.1mm (signal line) |
| 2.1mm ± 0.1mm (power cord) |
| Cable outer diameter |
10.50mm ± 0.2mm |
| outer sheath, material |
PUR |
| outer sheath, color |
Black RAL 9005 |
| Wire Material |
copper stranded wire |
| wire insulation material |
PVC |
| single line, color |
brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, purple, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| inner sheath thickness |
≥ 0.15mm |
| thickness, outer sheath |
≥ 0.76mm |
| Total Strand |
Twisted Pair |
| Rated voltage, cable |
300V |
| Test Voltage |
2000V |
| minimum bending radius, fixed installation |
7,5 x D |
| minimum bending radius, movable installation |
10 x D |
| minimum bending radius, fixed mounting |
79mm |
| minimum bending radius, mobile installation |
105mm |
| Dynamic Load Capacity (Bending) |
Maximum bending times: 1500000, Bending radius: 10 x D, Transverse trajectory: 2 m, Transverse speed: 2 m/s |
| flame retardant |
Complies with DIN EN 50265 |
| oil resistance |
Complies with VDE 0472 part 803 |
| Other protective functions |
good resistance to acid, alkali solution and solvent |
| special nature |
does not contain silicone |
| ambient temperature (operation) |
-40°C ... 90°C (cable, fixed installation) |
| -5°C ... 80°C (cable, movable installation) |
