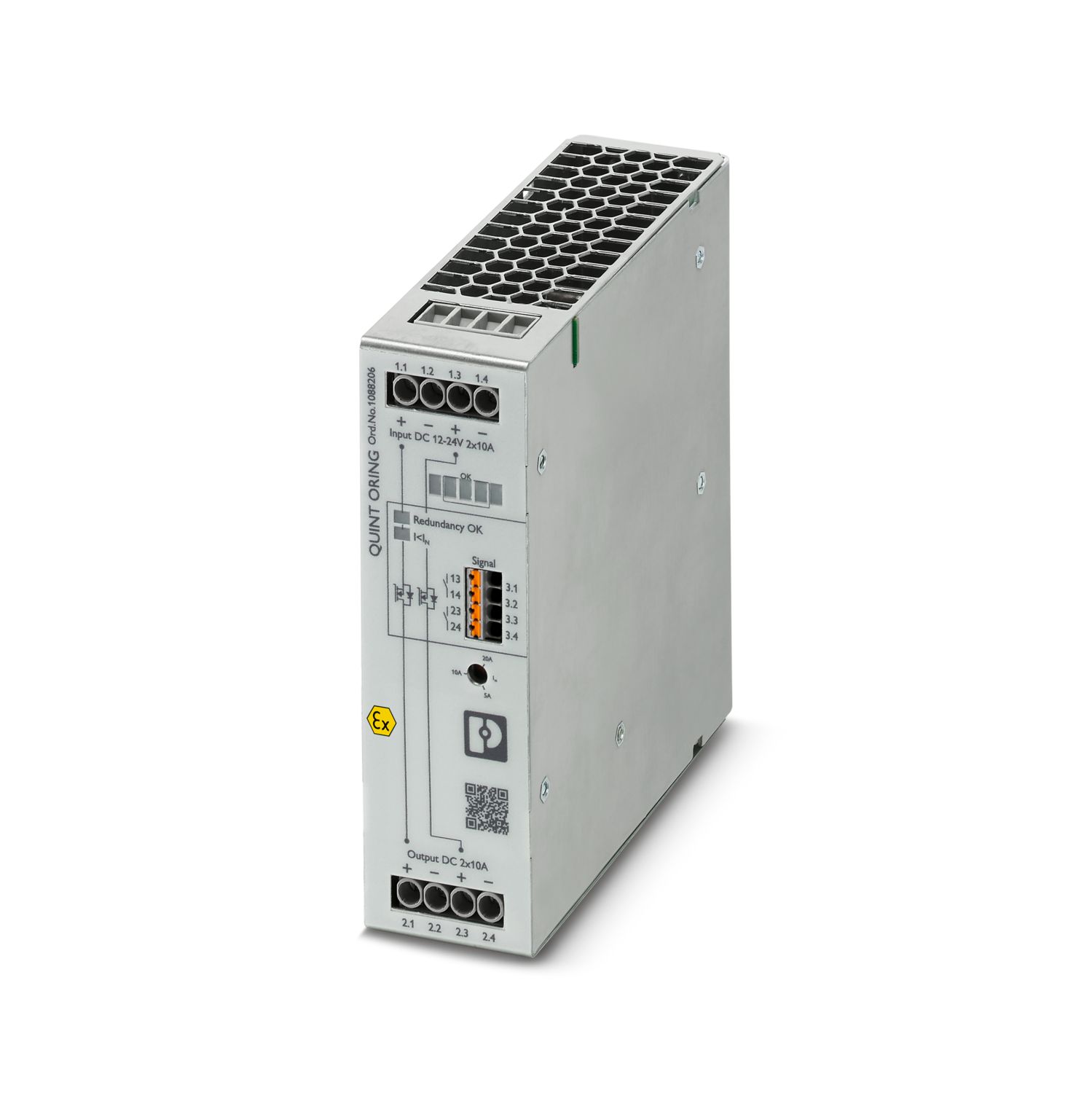

Phoenix QUINT4-ORING/12-24DC/2X10/2X10-Redundant module 1088206, active redundant module QUINT ORING adopts decoupling MOSFET, ACB Technology, DIN rail installation, 12V DC ... 24V DC, 2x 10 A, 2x 10 A
| Rated input voltage range | 12V DC ... 24V DC |
| Input Voltage Range | 8V DC ... 29.5V DC |
| Supply Voltage | DC |
| Rated input current (IN) | 2x 10 A |
| Static Boost (IStat.Boost) | 2x 12.5 A |
| Dynamic Boost (IDyn.Boost) | 2x 20 A (5 s) |
| selective fusing (ISFB) | 2x 60 A (15 ms) |
| prevents polarity reversal | <is 60V DC |
| required column name input protection circuit breaker | 60V DC |
| 16 A (features B, C) | |
| voltage drop, input/output | Typical 0.1V (IOUT= 10 A) |
| efficiency | Typical 98.5 % (12V DC) |
| Typical 99% (24V DC) | |
| Rated output voltage | UIn- 0.1V |
| Rated output current (IN) | 2x 10 A |
| 1x 20 A | |
| Static Boost (IStat.Boost) | 2x 12.5 A |
| 1x 25 A | |
| Dynamic Boost (IDyn.Boost) | 2x 20 A (5 s) |
| 1x 40 A (5 s) | |
| selective fusing (ISFB) | 2x 60 A (15 ms) |
| 1x 120 A (15 ms) | |
| Concatenation | No |
| feedback voltage resistance | ≤ 32V DC |
| output | < 32V DC |
| Maximum rated load power loss | 4.08W (IOUT= 40 A) |
| 4.25W (IOUT= 20 A) |
| Input | |
| Location | 1.x |
| Wire Connection | |
| Connection Mode | screw connection |
| Rigidity | 0.2 mm² ... 6 mm² |
| flexibility | 0.2 mm² ... 4 mm² |
| flexible strip cold press head without plastic sleeve | 0.25 mm² ... 4 mm² |
| flexible strip cold press head with plastic sleeve | 0.25 mm² ... 4 mm² |
| AWG | 24 ... 10 |
| stripping length | 8mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Screw head drive mode | slotting L |
| Output | |
| Location | 2.x |
| Wire Connection | |
| Connection Mode | screw connection |
| Rigidity | 0.2 mm² ... 6 mm² |
| flexibility | 0.2 mm² ... 4 mm² |
| flexible strip cold press head without plastic sleeve | 0.25 mm² ... 4 mm² |
| flexible strip cold press head with plastic sleeve | 0.25 mm² ... 4 mm² |
Phoenix QUINT4-ORING/12-24DC/2X10/2X10-Redundant Module 1088206
