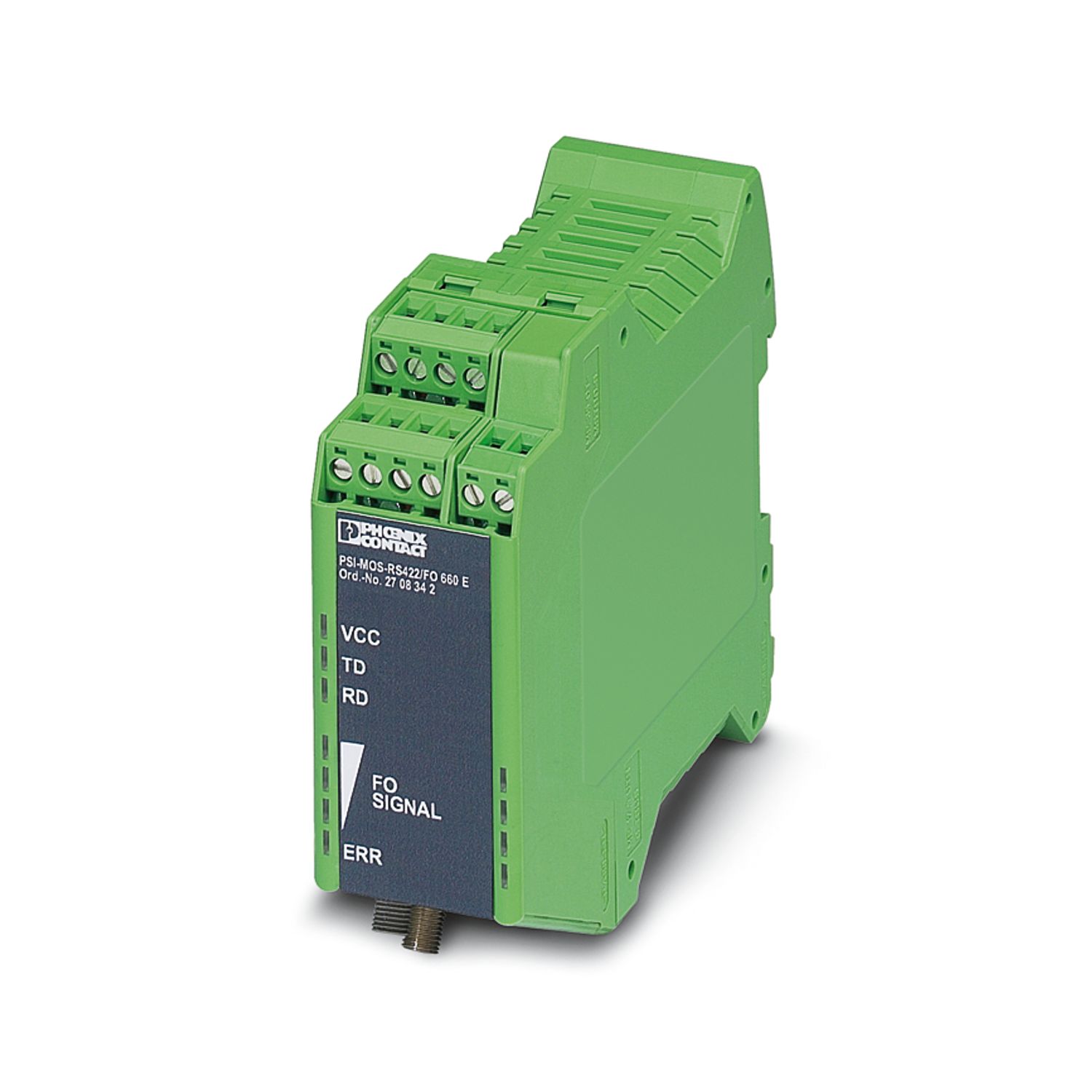

Phoenix PSI-MOS-RS422/FO1300 E-FO converter 2708575, optical fiber converter, built-in optical signal diagnostic function, alarm contact, for RS-422/RS-485 4-wire/INTERBUS system with rate up to 2Mbps, terminal equipment with 1 optical fiber interface (SC dual port), 1300nm, for glass optical fiber

Product Type Media Converter
Product Series PSI-MOS
MTTF 891 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
397 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
164 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
MTBF 544 years (Telcordia standard, temperature 25°C,21% operation cycle (5 days a week, 8 hours a day))
113 years (Telcordia standard, 40°C,34.25% cycle (5 days a week, 12 hours a day))

electrical isolation VCC // RS-422
rated conditions 2.75W
test voltage data interface/power supply 1.5 kVrms(50 Hz,1 min)
Power
Supply Voltage Range 18V DC ... 32V DC
Rated supply voltage 24V DC (UL compliant)
Typical current consumption 110 mA (24V DC)
Maximum current consumption ≤ 2 A (via DIN rail connector when running in connection site)

switching
Output Name relay output
Output Description Alarm output
outputs 1
maximum switching voltage 60V DC
42V AC
limit continuous current 1 A

Power
Connection Mode plug-in COMBICON screw terminal block
Tightening torque 0.56 Nm ... 0.79 Nm

-bit distortion, input ± 35% (allowed)
-bit distortion output < 6.25%
signal INTERBUS
transmission channel 2(1/1)RD, TD, Full Duplex
data: optical fiber
Channels 1
minimum transmission power -3.4 dBm (50/125 μm, multimode fiber)
-4.7 dBm (62.5/125 μm, multimode fiber)
-5.5 dBm (9/125 μm, single mode fiber)
transmission length including 3 dB system margin 27km (F-G 50/125 0.7dB/km,1300nm)
22 km (F-G 62.5/125 0.8 dB/km at 1300 nm)
45 km (with F-E 9/125 0.4 dB/km at 1300 nm)
Transfer Protocol is transparent to RS-422 interface protocols
Connection Mode SC Duplex
wavelength 1300 nm
Minimum Receiving Sensitivity -25.5 dBm (50/125 &micro;m)
-25.5 dBm (62.5/125&micro;m)
-26.5 dBm (9/125 &micro;m)
receiver 0 dBm
transmission medium multimode glass fiber
single-mode glass fiber
data: RS-422 interface according to ITU-T V.11,EIA/TIA-422,DIN 66348-1
serial transmission rate ≤ 2 Mbps
Connection Mode pluggable screw connection
Transmission Length ≤ 1000 m (depending on data rate, shielded stranded data cable)
terminal resistance 220 Ω
100 Ω
220 Ω
single wire/wiring point, rigid 0.2 mm² ... 2.5 mm²
single wire/wiring point, flexible 0.2 mm² ... 2.5 mm²
AWG stranded wire, flexible 14
AWG Wire Minimum Cross Section, Flexible 24
single wire/wiring point, maximum rigid AWG 14
Single Wire/End Point, Minimum Rigid AWG 24
stripping length 7mm
transmission medium copper cable
File Format/Encoding UART(11Bit,NRZ)
2708342
