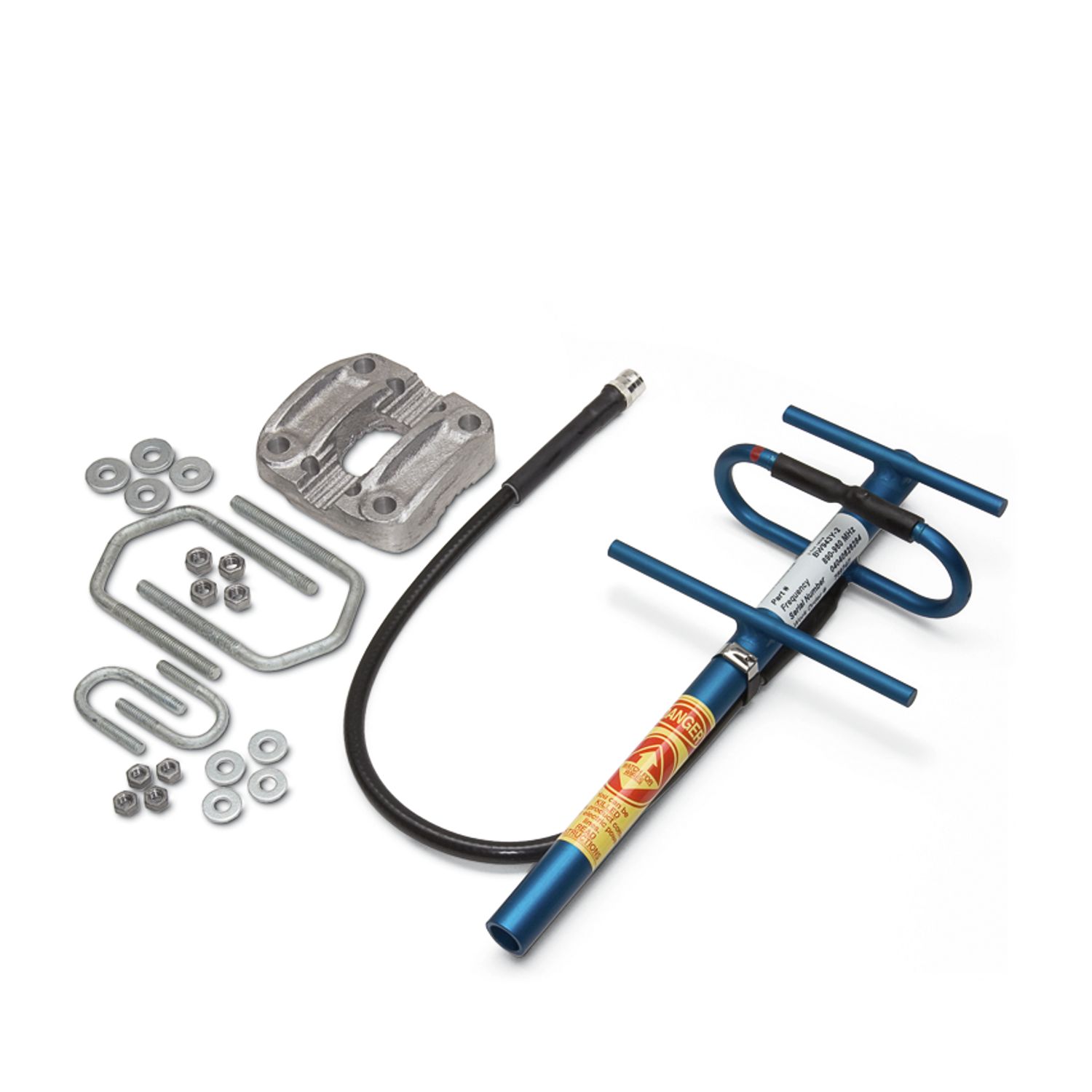

Phoenix RAD-ISM-900-ANT-YAGI-6.5-N-antenna 2867814, directional antenna, 868 MHz/900 MHz, gain: 8.65 dBi, polarity: linear, opening angle: h/v 100/62, protection level: IP. 65, interface: N (female), with mounting bracket and rod clamp
| Product Type | antenna |
| gain | 8.65 dBi |
| vertical beam width | 62 ° |
| horizontal beam width | 100 ° |
| polarity protection | linear vertical or horizontal |
| frequency band | 900 MHz |
| Frequency Range | 868 MHz ... 960 MHz |
| impedance | 50 Ω |
| Maximum capacitance | 200.00W |
| 50 Ω system | ≤ 1.50 |
| connection technology | |
| Connection Mode | N (female) with 0.6 m cable |
| outside diameter | 32mm ... 60 mm (rod) |
| width | 60.5mm |
| height | 172mm |
| Length | 304.8mm |
| External dimensions | |
| outside diameter | 32mm ... 60 mm (rod) |
| Identification Materials | Aluminum |
| V2A | |
| V2A |
| Cable Length | 0.60 m |
| connection cable | is |
| environmental conditions | |
| protection level | IP65 |
| ambient temperature (operation) | -40°C ... 80°C |
| wind speed | 240 km/h |
Phoenix RAD-ISM-900-ANT-YAGI-6.5-N-Antenna 2867814
